The GUI Console

The graphical user interface, called the "console", is invoked with the command vovconsole.

Since vovconsole displays the state of a specific FlowTracer project, you must choose which one by using vovproject enable project-name before starting the GUI.

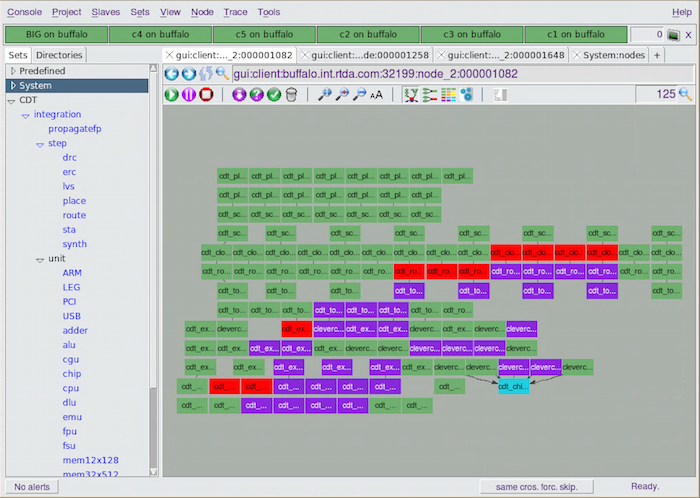

Figure 1.
The console consists of four panels:
  • The Set Browser is the panel on the left. It displays sets defined in the project. This Directories panel also operates as a specialized directory browser.
  • The Set Viewer is the panel on the right. It displays the elements in the current set in one of three possible views: horizontal graph, vertical graph, or grid. It can also display summary information about the current set.
  • The System Log is across the bottom of the window. It is hidden by default. It can be shown with the menu option Console > Show/Hide > Show System Log. It lists all important events.
  • The Graphical Tasker Monitor is across the top of the window. It shows the state of the tasker hosts.

In addition to these panels, there is a navigation menu at the top, and two rows of action buttons below that. There is also a search field for selecting nodes by name.


vovconsole: Usage Message

USAGE:
      vovconsole [options]
OPTIONS:
    -help                    -- Get this message.
    -v                       -- Increase verbosity.
    -geometry  WxH           -- Specify initial size of console.
    -fontsize <size>         -- Specify a size for the normal font.
                                Default is 10.
    -view  grid|graph|stat   -- Specify the initial view for the set
                                        specified with -set.
                                        Default is 'grid'
    -set      <setNameOrId>  -- Show specified set in a new pane using the
                                view specified with the previous -view option.
                                Default to not to show any set.
                                May be repeated.
    -initsystemnodes         -- Initialize the console upon start-up with
                                all nodes in the trace.
    -batch  <file>           -- Execute specified file after the console is
                                ready.
    -showcustomize           -- Show areas that can be customized.
    -proj <vovproject>       -- Does nothing. Used when bsub'ing the
                                vovconsole to track which console is on
                                which project.
                                See: VOVCONSOLE_SUBMIT_CMD
    -monochrome              -- Use gray except for top bar

EXAMPLES:
    % vovconsole &
    % vovconsole -fontsize 12 &
    % vovconsole -geometry 1000x500  &
    % vovconsole -view vertical -set System:jobs -view grid
                 -set System:files &
    % vovconsole -showcustomize
