This report is a powerful data mining tool that can find pin-pointed answers about

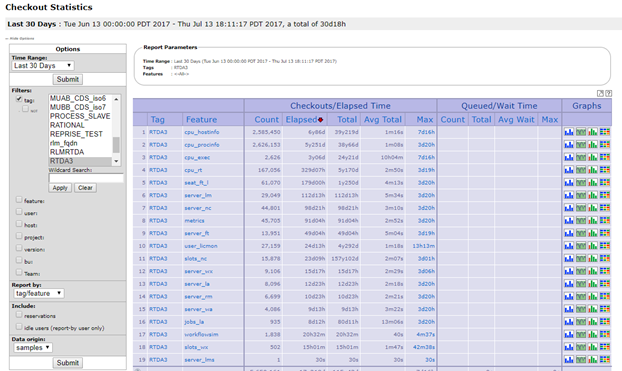

license utilization. Figure 1.
The report shows checkout and elapsed time statistics and queued/wait time
statistics, and provides links to the graphs. The Checkout Statistics Report
includes the following columns:
Tag
The tag representing the license server.
Feature
The license feature name.
Count
The number of checkouts.
Checkouts/Elapsed
The amount of elapsed time since the feature was checked out.
Checkouts/Total
The elapsed time normalized for the number of tokens checked out. This
provides a cumulative value for multi-token features.
Checkouts/Avg Total
The elapsed time divided by the number of checkouts.
Checkouts/Max
The maximum number of checkouts.
Queued Count
The number of times the feature was requested.
Queued Total
The elapsed time divided by the number of queues.
Queued Avg Wait
The average elapsed time before a queue becomes a checkout.
Queued Wait Max
The max elapsed time before a queue becomes a checkout.
Graphs
Links to the detailed plot, statistical plot, efficiency histogram and
activity heatmap.
This report shows the actual checkouts shown in the
Statistics view. This view shows most of the information that is
normally found in a license manager status command.
