Target Category: C2407, Delfino, F280x, F281X, Piccolo, STM32

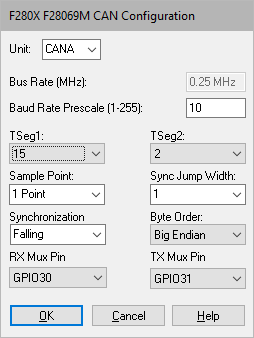

The CAN Config lets you configure the controller area network.
Baud Rate Prescale: Indicates the divisor applied to system clock to obtain the CAN clock. For more information, see http://www.bittiming.can-wiki.info/.
Bus Rate: Indicates the base bit rate of CAN bus messages.
Byte Order: See Texas Instruments or STM32 documentation.
RX Mux Pin: Indicates the RX pin choices for CAN messages.This parameter is not available for C2407 targets.
Sample Point: See Texas Instruments or STM32 documentation.
Synchronization: See Texas Instruments or STM32 documentation.
Sync Jump Width: Indicates the amount the CAN unit can adjust timing to sync with the bus. (1 for CANopen and DeviceNet.)
TSeg1 and TSeg2: The ratio defines the sampling point for the bit: (Tseg1+1)/(Tseg1+Tseg2+1). For CANopen and DeviceNet, ratio=0.875; for ARINC 825, ratio=0.75. For more information, see http://www.bittiming.can-wiki.info/.
TX Mux Pin: Indicates the RX pin choices for CAN messages. This parameter is not available for 2407 targets.
Unit: Specifies the unit.
