Creating a Characterised Surface

Define a surface that is characterised by previously obtained data in a .tr file.

Note: Only supported in conjunction with the RL-GO solution method.
  1. On the Construct tab, in the Define group, click the  Media icon. From the drop-down list, select the  Characterised Surface icon.

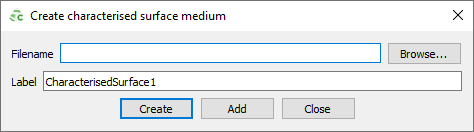

    Figure 1. The Create characterised surface medium dialog.
  2. In the Filename field, browse to the location of the .tr file.
  3. In the Label field, enter a unique label for the characterised surface.
  4. Click Create to define the characterised surface and to close the dialog.
