Altair® Panopticon



Shakti (Beta) Connector

The Shakti connector allows connecting to Shakti databases on a polled basis.

Steps:

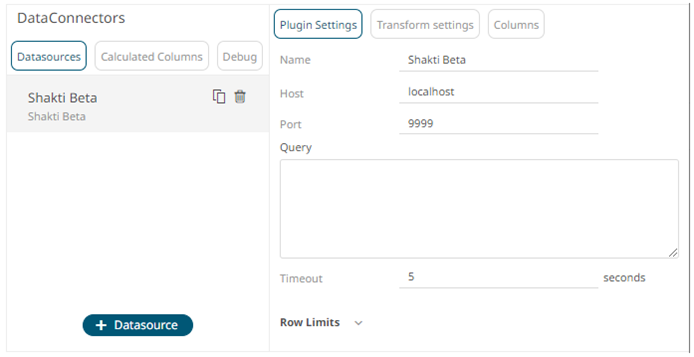

1.     Select Shakti Beta from the Connectors panel. The Shakti Settings panel displays.



2.     Enter the Name of the Shakti connector, then click .

3.     Enter the following properties:

Property

Description

Host

Shakti host address.

Port

Shakti host port. Default is 9999.



4.     Enter a free text Query.

5.     Adjust  the Timeout, if needed. Default is 5 (in seconds).

8.     Set the row limit of the data set.

9.     Tap the Preview Selected Data Source slider to turn it on.

10.     Click  to display the data preview.
