PlugToPins_n
Connect all (negative) Pins
Library
Electrical/MultiPhase/Basic
Description
Connects all pins of plug_n to the pin array pin_n.

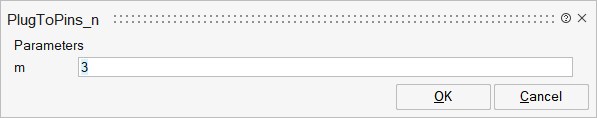

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_m | m | Number of phases | Scalar |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
plug_n | implicit | output | 1 | |
pin_n | implicit | output | 2 |
