ConstantForce
Constant force, not dependent on speed
Library
Mechanics/Translational/Sources
Description
Model of constant force, not dependent on velocity of flange.
Please note:
Positive force accelerates in positive direction of movement, but brakes in reverse direction of movement.
Negative force brakes in positive direction of movement, but accelerates in reverse direction of movement.

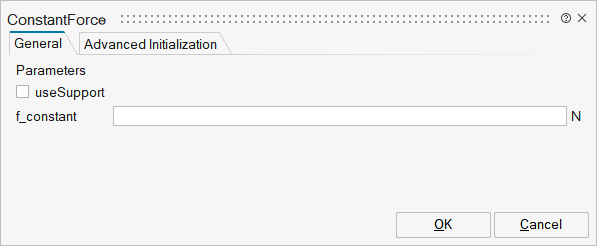

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_useSupport | useSupport | = true, if support flange enabled, otherwise implicitly grounded | Number | 0 |
mo_f_constant | f_constant | Nominal force (if negative, force is acting as load in positive direction of motion) | Scalar |
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_s | s | s | Structure | |
mo_s/fixed | fixed | Cell of scalars | true | |
mo_s/start | start | Cell of scalars | ||
mo_f | f | f | Structure | |
mo_f/fixed | fixed | Cell of scalars | true | |
mo_f/start | start | Cell of scalars |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
flange | implicit | Flange of component | output | 1 |
Port 2 | implicit | Support/housing of component | input | mo_useSupport |
