PartialThermalPortInductionMachines
Partial thermal port of induction machines
Library
Modelica/Electrical/Machines/Interfaces/InductionMachines
Description

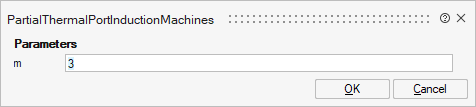

Partial thermal port for induction machinesParameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_m | m | Number of stator phases | Scalar |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
Port 1 | implicit | Partial thermal port of induction machines | output | 1 |
