PlugToPins_n
Connect all (negative) pins
Library
Modelica/Electrical/QuasiStationary/MultiPhase/Basic
Description
Connects all m single phase (negative) pins of the multi phase (negative) plug to an array of m single phase (negative) pins.
See also
PlugToPin_p, PlugToPin_n, PlugToPins_p

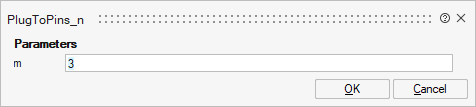

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_m | m | number of phases | Scalar |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
plug_n | implicit | output | 1 | |
pin_n | implicit | output | 2 |
