VariableConductor
Single phase variable conductor
Library
Modelica/Electrical/QuasiStationary/SinglePhase/Basic
Description
The linear conductor connects the voltage v with the
current i by i = G*v.
The conductance G is given as input signal.
The variable conductor model also has an optional conditional heat port. A linear temperature dependency of the conductance is also taken into account.
See also
Resistor, Conductor, Capacitor, Inductor, Impedance, Admittance, Variable resistor, Variable capacitor, Variable inductor, Variable impedance, Variable admittance

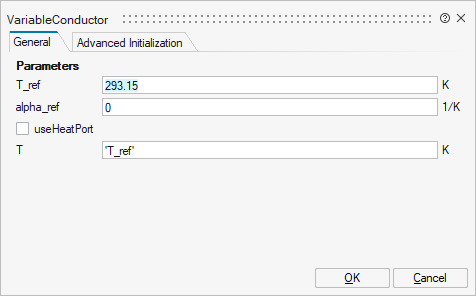

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_T_ref | T_ref | Reference temperature | Scalar | |
mo_alpha_ref | alpha_ref | Temperature coefficient of conductance (G_actual = G_ref/(1 + alpha_ref*(heatPort.T - T_ref)) | Scalar | |
mo_useHeatPort | useHeatPort | =true, if heatPort is enabled | Number | 0 |
mo_T | T | Fixed device temperature if useHeatPort = false | Scalar |

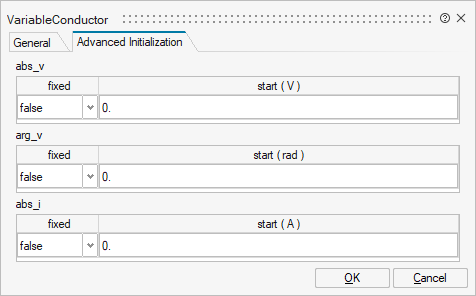

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_abs_v | abs_v | abs_v | Structure | |
mo_abs_v/fixed | fixed | Cell of scalars | true | |
mo_abs_v/start | start | Cell of scalars | ||
mo_arg_v | arg_v | arg_v | Structure | |
mo_arg_v/fixed | fixed | Cell of scalars | true | |
mo_arg_v/start | start | Cell of scalars | ||
mo_abs_i | abs_i | abs_i | Structure | |
mo_abs_i/fixed | fixed | Cell of scalars | true | |
mo_abs_i/start | start | Cell of scalars | ||
mo_arg_i | arg_i | arg_i | Structure | |
mo_arg_i/fixed | fixed | Cell of scalars | true | |
mo_arg_i/start | start | Cell of scalars | ||
mo_P | P | P | Structure | |
mo_P/fixed | fixed | Cell of scalars | true | |
mo_P/start | start | Cell of scalars | ||
mo_Q | Q | Q | Structure | |
mo_Q/fixed | fixed | Cell of scalars | true | |
mo_Q/start | start | Cell of scalars | ||
mo_S | S | S | Structure | |
mo_S/fixed | fixed | Cell of scalars | true | |
mo_S/start | start | Cell of scalars | ||
mo_pf | pf | pf | Structure | |
mo_pf/fixed | fixed | Cell of scalars | true | |
mo_pf/start | start | Cell of scalars | ||
mo_omega | omega | omega | Structure | |
mo_omega/fixed | fixed | Cell of scalars | true | |
mo_omega/start | start | Cell of scalars | ||
mo_LossPower | LossPower | LossPower | Structure | |
mo_LossPower/fixed | fixed | Cell of scalars | true | |
mo_LossPower/start | start | Cell of scalars | ||
mo_T_heatPort | T_heatPort | T_heatPort | Structure | |
mo_T_heatPort/fixed | fixed | Cell of scalars | true | |
mo_T_heatPort/start | start | Cell of scalars | ||
mo_G_actual | G_actual | G_actual | Structure | |
mo_G_actual/fixed | fixed | Cell of scalars | true | |
mo_G_actual/start | start | Cell of scalars | ||
mo_G_ref | G_ref | G_ref | Structure | |
mo_G_ref/fixed | fixed | Cell of scalars | true | |
mo_G_ref/start | start | Cell of scalars |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
pin_p | implicit | Positive quasi-static single-phase pin | input | 1 |
pin_n | implicit | Negative quasi-static single-phase pin | output | 1 |
G_ref | implicit | Variable conductance | input | 2 |
Port 4 | implicit | Conditional heat port | input | mo_useHeatPort |
