BaseData

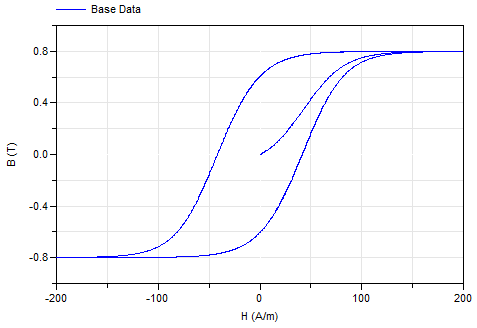

Hysteresis table data

BaseData

Library

Modelica/Magnetic/FluxTubes/Material/HysteresisTableData

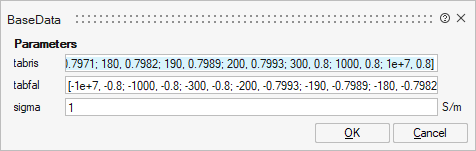

BaseData_0

Name	Label	Description	Data Type
mo_tabris	tabris	Table data of the rising (lower) branch of the hysteresis envelope curve (H, B)	Matrix
mo_tabfal	tabfal	Table data of the falling (upper) branch of the hysteresis envelope curve (H, B)	Matrix
mo_sigma	sigma		Scalar

Name

Label

Description

Data Type

Valid Values

mo_tabris

tabris

Table data of the rising (lower) branch of the hysteresis envelope curve (H, B)

Matrix

mo_tabfal

tabfal

Table data of the falling (upper) branch of the hysteresis envelope curve (H, B)

Matrix

mo_sigma

sigma

Scalar
