Align the back face centre of the horn on the front upper edge of the
cuboid.
Select Subtract1 in the model tree.

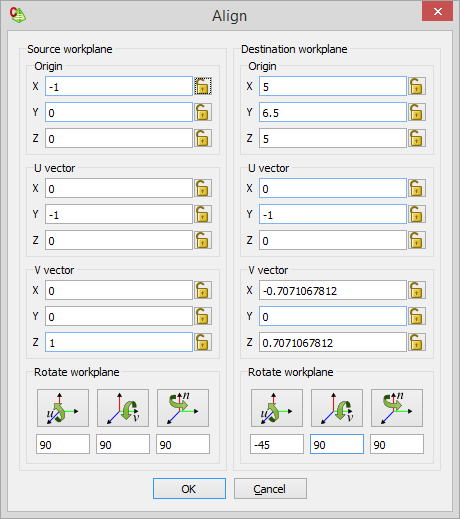

On the Transform tab, in the
Transform group, click the Align icon.
Place the Source workplane by holding down Ctrl+Shift to snap to the face centre at the back
of the horn.
The destination workplane is to be set on the top and nearest edge of the
cuboid at an angle of 45° to the cuboid.
Rotate the horn by using a sequence of rotations around the U,V and/or N axis, depending on the original placement and direction of the
source workplane.
Tip: To rotate by 45°, enter
45 in the field of the relevant axis and press
one or a combination of the , , or buttons.
Click OK to apply the transform and to close the
dialog.
Union the cuboid and horn to ensure mesh connectivity.
Select both Cuboid1 and Subtract1
in the model tree.
On the Construct tab, in the Modify
group, click the Union icon.
