Viewing the Geometry Import Log

View the log file for a summary of the last geometry import. This information is useful in cases where the import conversion fails.

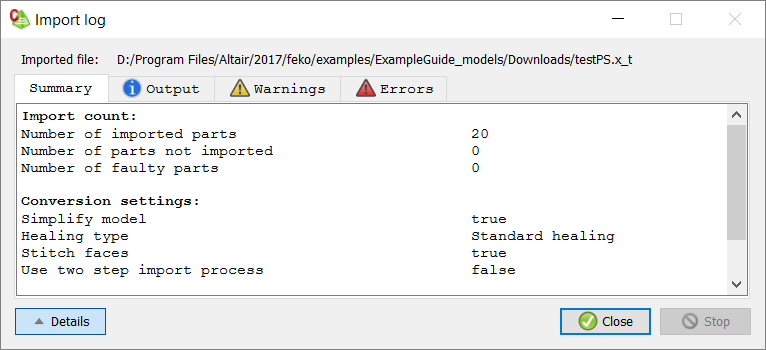

1. On the Home tab, in the File group, click the  Import icon. From the drop-down list select the  Geometry import log icon.
2. Click the Warning tab or Errors tab to view any errors in the import process (when applicable).









   Trouble: View the model format conversions performed during a geometry import in the log file located at %FEKO_USER_HOME%/logs/CADimport.*.log.
3. Click Close to close the dialog.
