To select back seat nodes

 Previous topic Next topic JavaScript is required for expanding text JavaScript is required for the print function

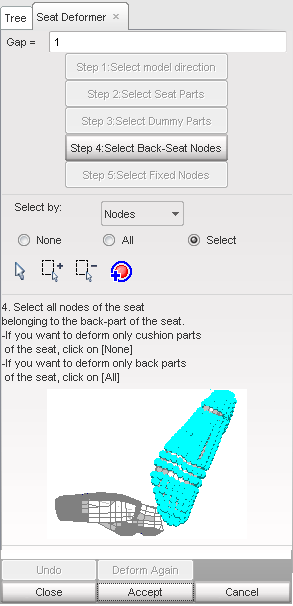

1.Select Nodes for Select by.

seatdeformer_step4

2.Click the Select radio button and select the fixed nodes using the following tools:
•Click selectgeneral-24 and pick nodes in the graphic window.
•Click selectByBoxAdd-24 to add nodes by box selection.
•Click selectByBoxRemove-24 to remove nodes by box selection.
•Click 10_addallnodes to select all nodes of the previous seat cushion selection.

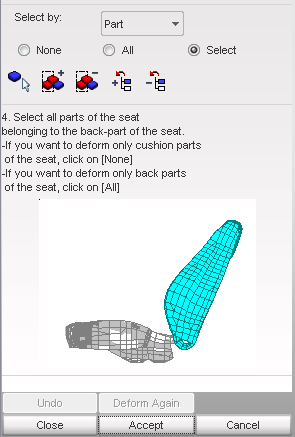

3.Select Part for Select by.

seatdeformer_step4A

4.Select the parts of the dummy using the following tools:
•Click selectPartGeneral-24 and pick parts in the graphic window.
•Click selectPartByBoxAdd-24 to add parts by box selection.
•Click selectPartByBoxRemove-24 to remove parts by box selection.
•Click treeAddEntity-24 to add the parts selected in the tree.
•Click treeRemoveEntity-24 to remove the parts selected in the tree.
5.Click Accept to validate the selection.
