Four square planes will be generated to model the radome as a thin layer
approximation. It may be achieved by using the plane command, which requires the
first corner (the lower one), the width (X size) and the depth (Y size). The table
below shows the parameters to be used for every plane:
Plane
X (mm)
Y (mm)
Z (mm)
Width (mm)
Depth (mm)
1
-250
-250
0
500
500
2
-250
-250
thickness
500
500
3
-250
-250
thickness+t
500
500
4
-250
-250
(2*thickness)+t
500
500

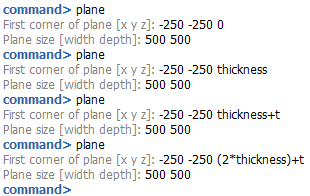

Figure 1. Command line planes definition
Figure 2. List of geometric entities in the tree
After creating the four planes, in the tree we can see that they have been added in
order as Objects, and each one has a different name.
