Plot Area

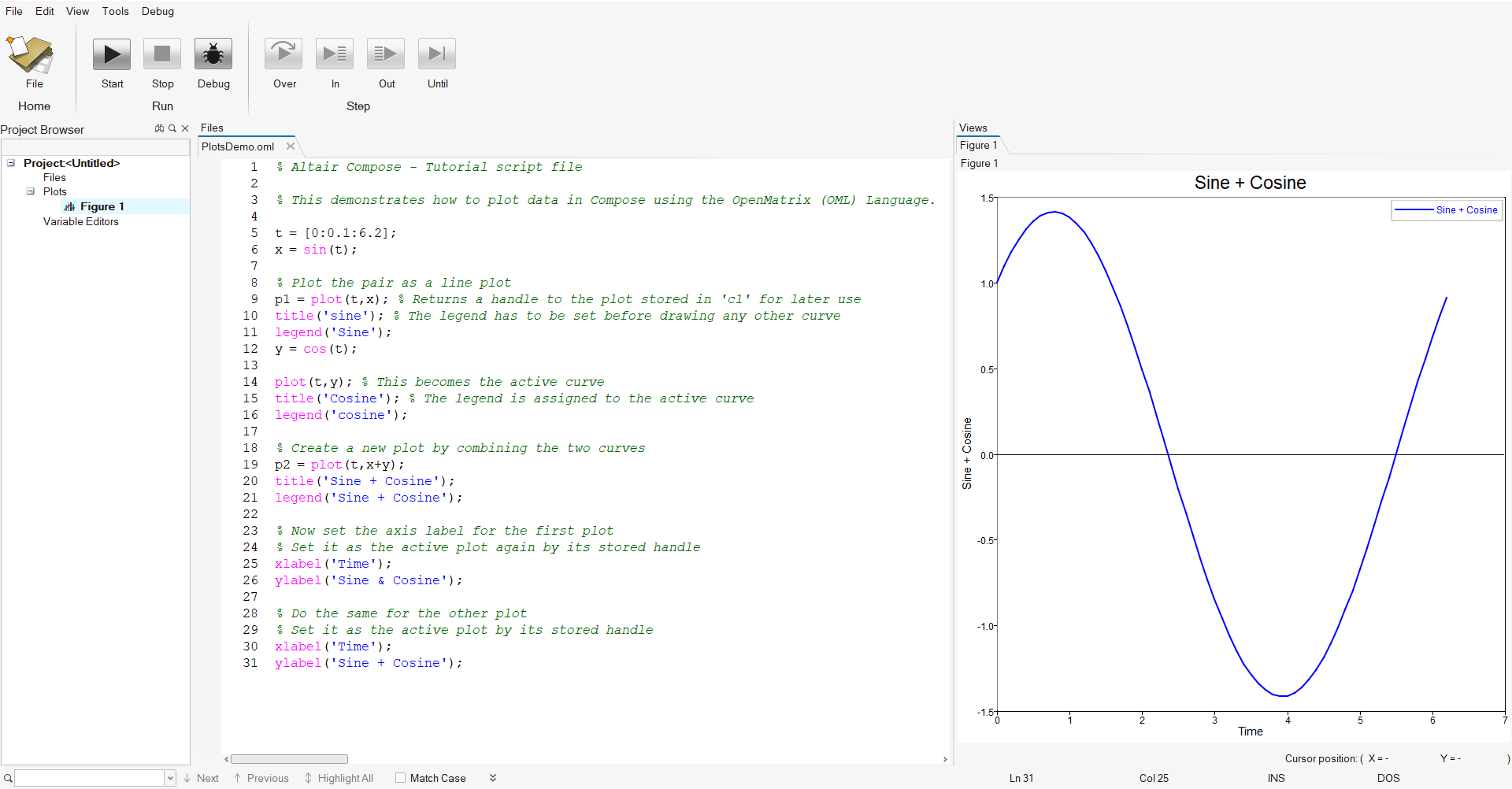

Execute 2D and 3D plot commands and display plots in a dedicated area.
The IDE offers layout management options to show either one or multiple plots.
Figure 1.

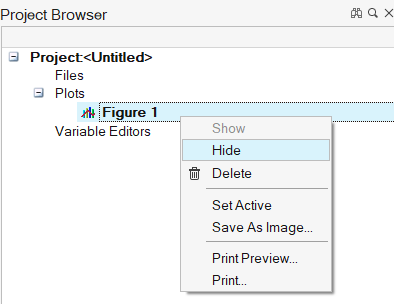

Plots created by OML commands are listed in the Project Browser. Selecting a plot in the Project Browser provides access to:
- Editing the plot properties in the Property Editor
- Managing the plot (show/hide/delete)
Figure 2.
