LS Card

This card assigns a series circuit of discrete elements in series to a segment.

On the Source/Load tab, in the Loads / networks group, click the  Load icon. From the drop-down list, click the  Series load (LS) icon.

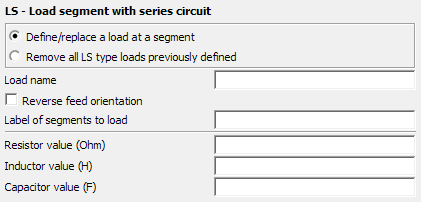

Figure 1. The LS - Load segment with series circuit dialog.


Figure 2. Sketch of the series circuit.

Parameters:

Define/replace a load at a segment
Define a load with the following parameters.
Remove all LP type loads previously defined
This LS card does not define a load, but rather all previously defined LS loads are deleted. All the other input parameters of this card are ignored.
Load name
The name of the load.
Reverse feed orientation
By default, the vector of the voltage is orientated in the direction from the start of the segment to its end (the direction in which it was created). When this option is checked, the vector of the voltage is orientated in the opposite direction. (This is the direction of the current flow through the segment. The internal EMF (electromagnetic force) of the impressed voltage source is in the opposite direction.
Label of segments to load
All segments with this label are assigned the series circuit values specified below.
Resistor value
Value of the resistor in Ω .
Inductor value
Value of the inductor in H.
Capacitor value
Value of the capacitor in F.

The impedance is given by

(1) Z s = R s +jω L s + 1 jω C s

If a capacitance of zero is selected, it is interpreted as infinite capacitance, therefore in the case of the series circuit it is zero.

The LS card may be combined with the LD, LP, LZ and the SK cards, but only one LS card may be used per label. If a second LS card is used, it replaces the values entered by the first one. This card has no significance for surface elements, even when these are assigned the same label.
