PY Card

On the Construct tab, in the Surfaces group, click the  Polygon icon. From the drop-down list, click the  Unmeshed polygon (PY) icon.

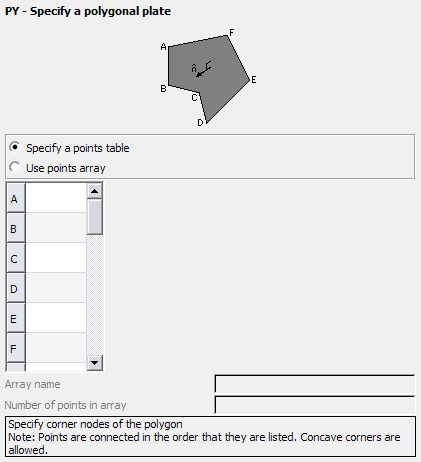

Figure 1. The PY - Specify a polygon plate dialog.

Parameters:

Specify a points table

This option allows data entry in a table with maximum of 26 points.

A

The first corner point of the polygon.

B

The second corner point of the polygon.

Use points array

This option allows data entry using arrays without any limit on the number of corner points.

Array name

The name of the point (node name) array.

Number of points in array

The number of elements, for example, n of the point (node name) array to use. Only the first n elements of the array will be used.

A maximum of 26 corner points are allowed using the table entry method, but there is no restriction on the number of points using the array entry method. The points are connected in the order that they are entered in the PY card. The corner points have to be defined prior to the PY card by a DP card.

Example of PY card usage

This card can be used to generate the polygon (in this case a triangle) shown in Figure 2. Note that this triangle is not meshed, as the result would be if the BT or PM cards had been used.

Figure 2. Example of a triangle created with the PY card.
