Add Mark

Add the mark into the PCB design area.

The Mark List shows the added marks.

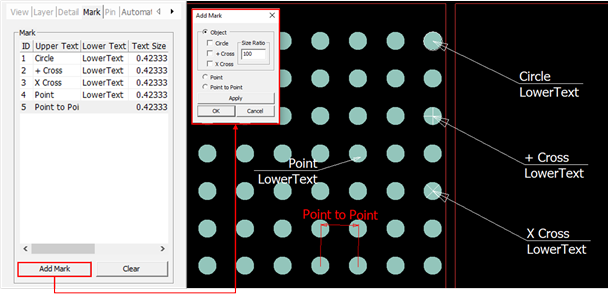

Figure 1.

1. Add Mark: Add a new mark.
2. After selecting the object type in the dialog, select and click the target pad in PCB design to display the mark on the drawing.
   A mark is created on the selected pad.
3. Click Apply to place it in the corresponding position.
4. Clear: Clear the mark.
