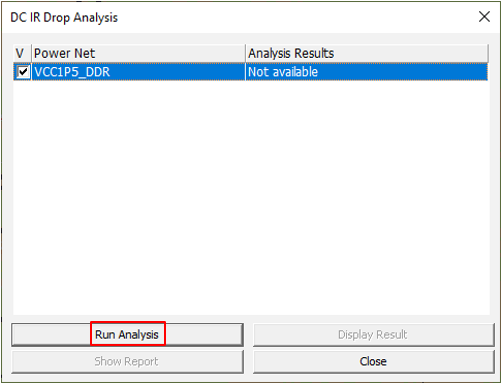

In the DC IR Drop Analysis dialog, select the Power Net
and click Run Analysis.
Figure 1.
After the simulation is complete, the DC IR Drop Analysis Result
Display window opens. You can change the view type to Voltage,

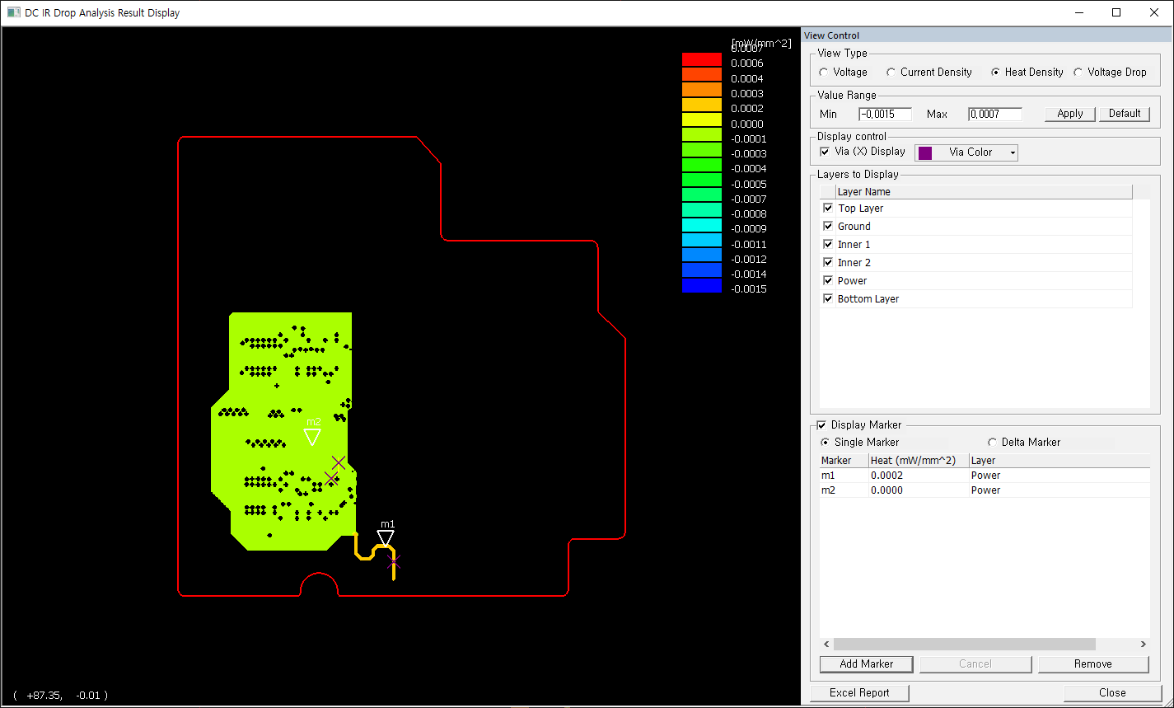

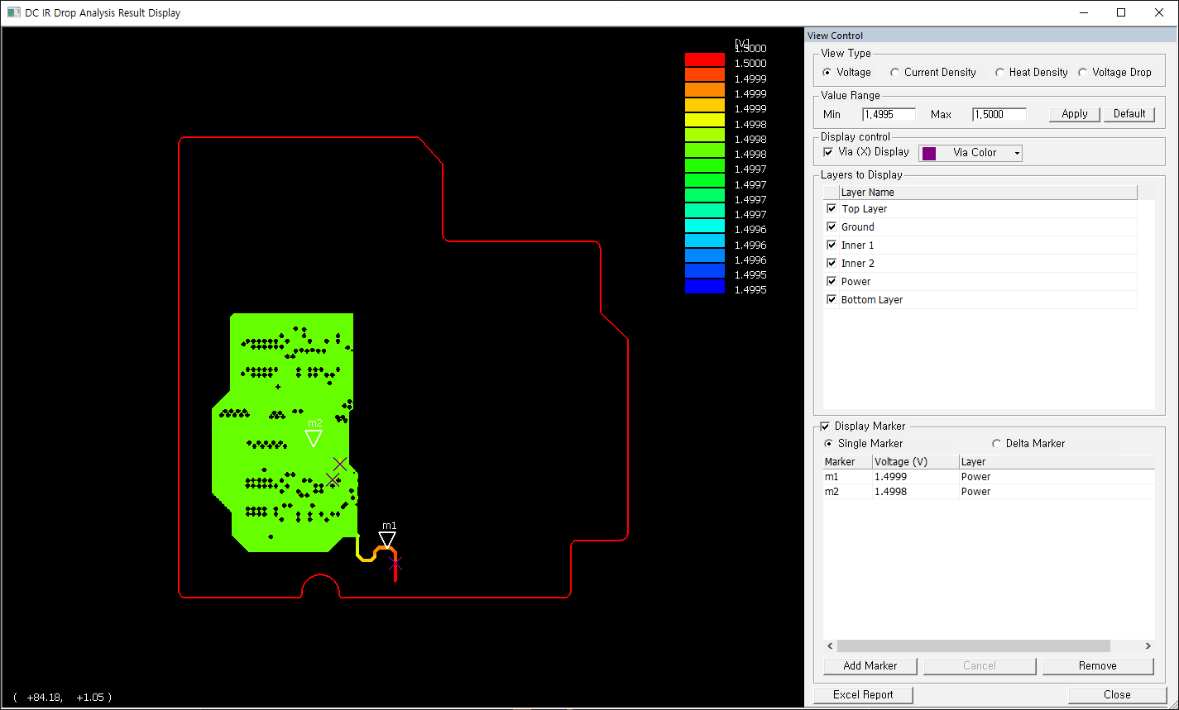

Current Density, and Heat Density. Figure 2. Voltage View Figure 3. Current Density View Figure 4. Heat Density View
