Setup Via Padstacks

Manage via padstacks for electrical analysis.

1. From the menu bar, click Properties > Via Padstacks.
   The Via Padstacks dialog opens.
2. Use the Add, Remove, and Copy buttons to add, removed, and copy via padstacks.
   When adding a new via padstack, you should assign Padstack name.
3. Import pre-defined via padstacks.
   1. Click Import.
   2. In the file explorer, navigate to and select the desired via padstacks.
   3. Click Open.

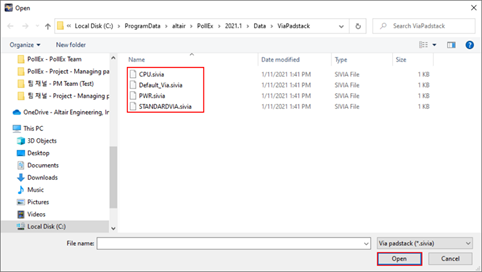

   Figure 1.

   The Via Padstacks dialog will display again, and you can find desired via padstacks are imported.
