SHAFT

Overview

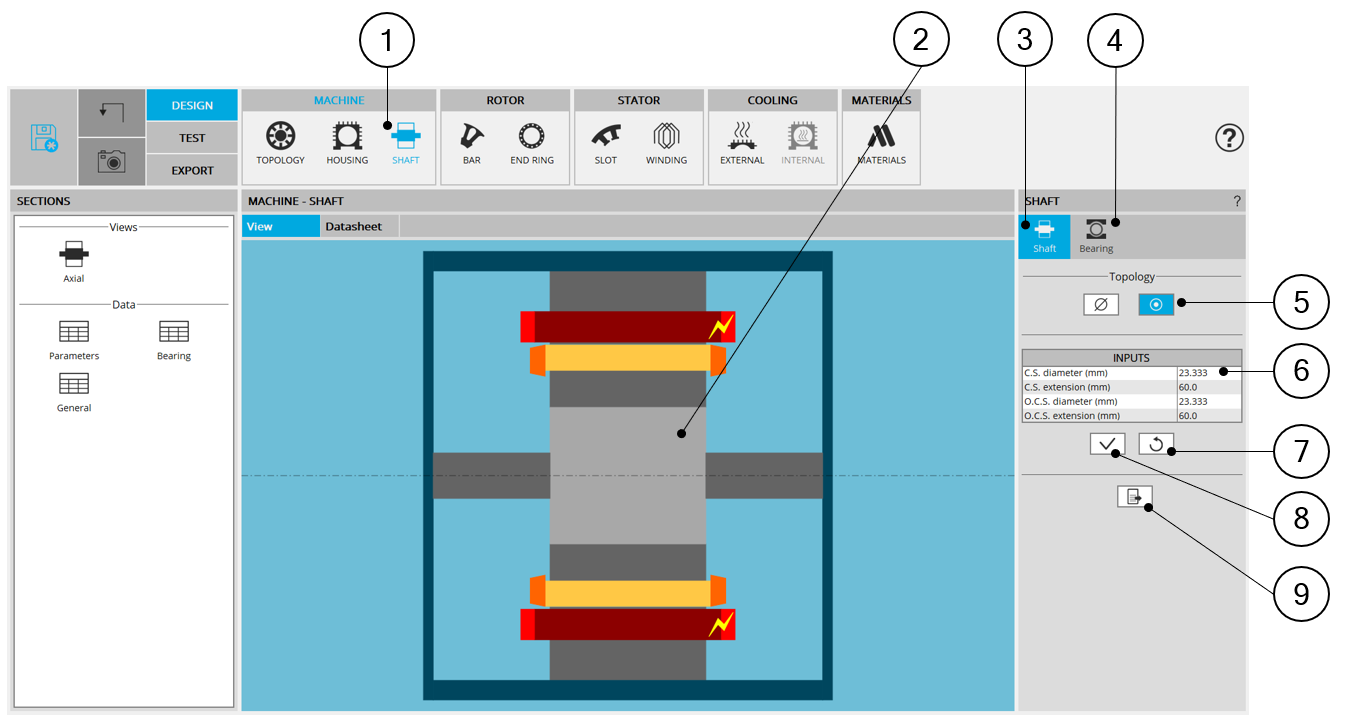

SHAFT design area
1 Selection of the MACHINE subset: SHAFT panel (Click on the icon SHAFT)
2 Visualization of the motor axial view to visualize the shaft topology and dimensions.
3 Shaft section to define the shaft parameters
4 When there is a shaft, the section of Bearing is unlocked
5

Choice of the shaft type. Two types are available:

  • None: No dimension to declare. Shaft is replaced by fluid material
  • Solid: End-shaft must be defined - Structural data of the shaft are then edited

If shaft type is solid, end-shaft must be defined.

Note: Connection side (C.S.) is identified by yellow lightning.
Note: Range of definition for dimensions: [0, 20000] mm.
6 Shaft input data to be defined
7 Button to restore default input values
8 Button to Apply inputs. Pressing the enter key twice applies inputs too.
9 Icon to export shaft data into *.txt or *.xls files.
