Management of inputs

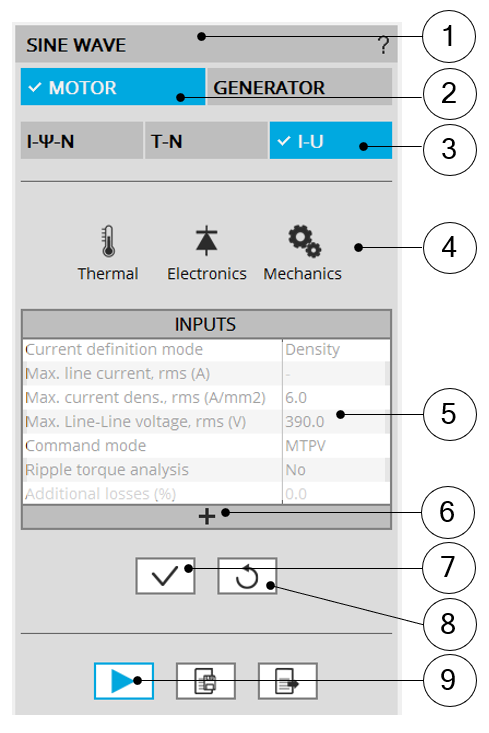

Management of inputs - Overview

		1	Name of the test package
		2	Selection of the operating mode: Motor or Generator.
		3	Button to select the test to perform, when several tests are available in the test package. The check mark n indicates that the results are available.
		4	Defining test settings: General conditions relative to the machine: Active component temperatures (winding, magnet) Electronics User Mechanical loss model parameters For more information, please see “Test settings” section
5	User input parameters to be defined.
6	Click on (+) to displayed advanced parameters when needed
7	Button to apply input parameter values.
8	Button to restore default parameter values.
9	Button to start running the test (Input parameters are validated after clicking this button). For more details see the section dedicated to test functions.
