Add/Edit Shot Sleeve

Create and edit a virtual shot sleeve in Inspire Cast.

1. Click the Casting tab.
2. Click the Components icon.


3. Click the Add/Edit Shot Sleeve icon.


4. Click the cookie on the runner to create the shot sleeve.
   Note: If there is no cookie already created, Inspire Cast will create it automatically.

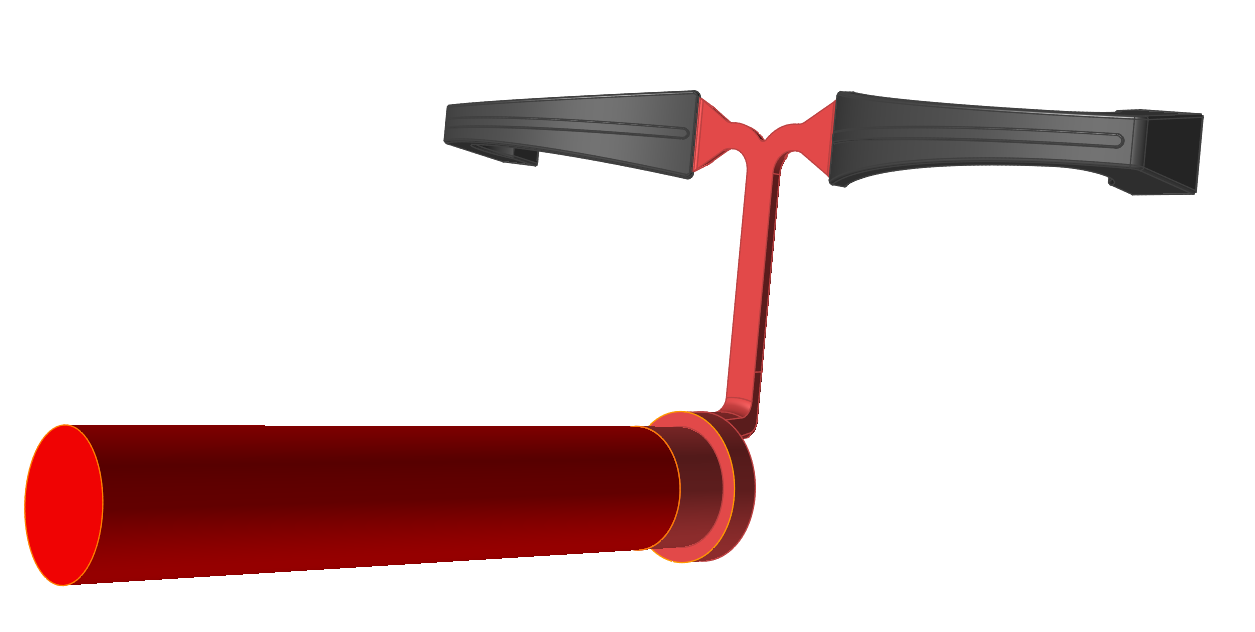

   The shot sleeve is created.





5. To edit the shot sleeve, use the microdialog options to define the length.
   Note: If Inspire Cast created the cookie automatically, you can also define the diameter in the microdialog.





6. Right-click and mouse through the check mark to exit, or double-right-click.
