Run Compose in Console Mode

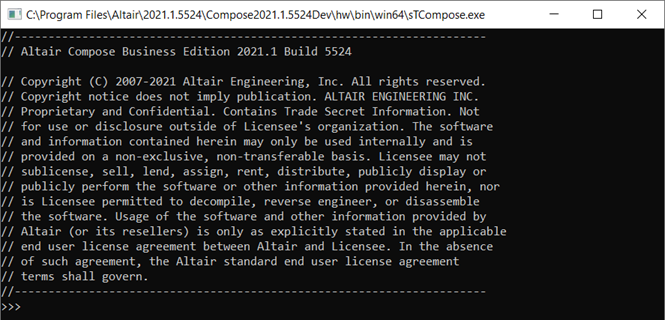

Opening Compose in Console mode provides a shell where Compose OML language commands can be entered at the prompt.

Complete the step depending on your situation.

For this setup	Do the following
Windows PC	Invoke the Compose Console via All Programs > Altair 2022.2 > Compose 2022.2 Console.
DOS Prompt on a PC	Run the following command: <install dir>\Compose_Console.bat or this command: <install dir>\hwx\bin\win64\ExecWinEnvComp.exe -cfg -kc -ef Comp.env -aa 0 -ex ExecMainComp.exe –toolbox -continue
Linux Shell	<install dir>/scripts/Compose_Console

For this setup

Do the following

Windows PC

Invoke the Compose Console via All Programs > Altair 2022.2 > Compose 2022.2 Console.

DOS Prompt on a PC

Run the following command:

<install dir>\Compose_Console.bat

or this command:

<install dir>\hwx\bin\win64\ExecWinEnvComp.exe -cfg -kc -ef Comp.env -aa 0 -ex ExecMainComp.exe –toolbox -continue

Linux Shell

<install dir>/scripts/Compose_Console

You can run the Console application without arguments to open it.

In Console mode, all OML Language features are exposed. However, every command related to the graphic windows (plotting, GUI, readvectorbuilder, and so on) are ignored.
