Net Topology Viewer

Net Topology Viewer is net viewer with showing topology style.

From the menu bar, click Option > Net Topology Viewer.
  • Select the target net in the lists.
  • Color table shows color of each physical layer. Elements on certain physical layers will be displayed as same color.

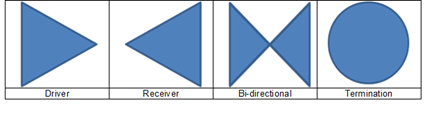

  • Base element should be the component’s pin. Depending on pin’s buffer types, shapes will be different.


    Figure 1.
  • Branching node points.
  • Via symbol.
  • Routing pattern symbol. It may have information, layer with colors, length, and width.
