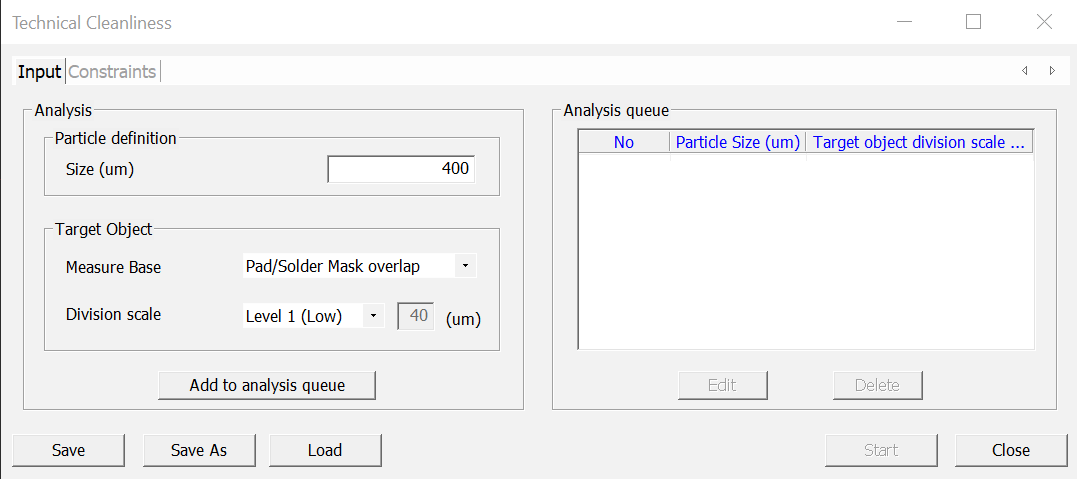

Input
From the menu bar, click .
Note: You have to import the design file before selecting the
Input option. Refer to PollEx
PCB manual for design file import.
- Analysis
- Analysis queue
Figure 1.

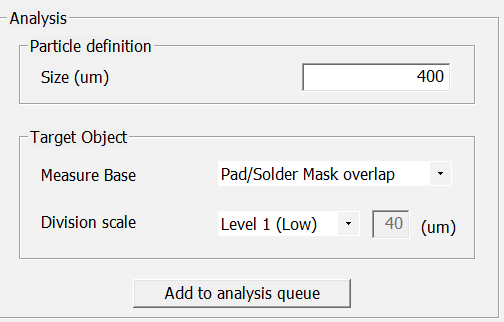

Analysis
PollEx TC perform analysis using parameter from the particle definition and the target object. Once parameter is created and provided as an input, it can be added to the queue list for analysis.
Figure 2.
The Analysis panel provides:
- Particle Definition: Define the particle size.
- Size: Enter the particle size to be analyzed. The larger the particle size value, the more time required to analyze the hazard area.
- Target Object: Defines the target area and level.
- Measure Base: Select the area which will be measured.
- Division Scale: Set the partition size of the object (Copper) required for the hazard area analysis. The smaller the size of the partition the more precise the inspection.

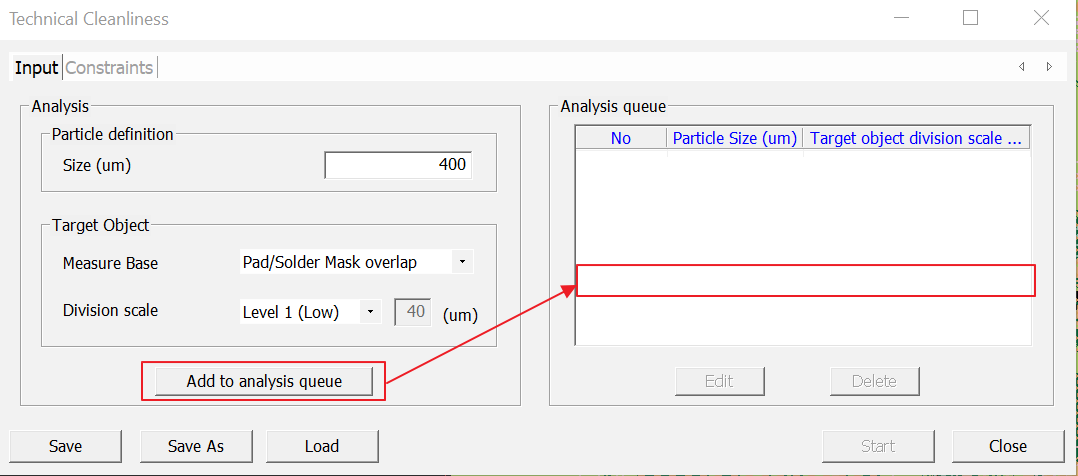

- Add to Analysis Queue: Add the parameter to the table listed on the Analysis
queue panel.
Figure 3.

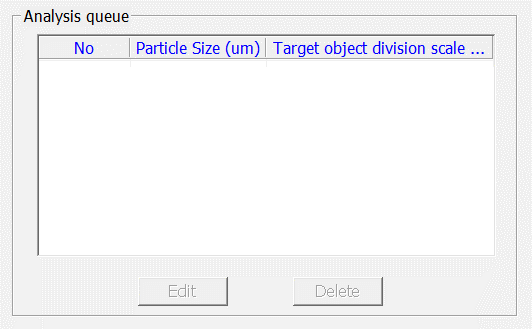

Analysis Queue
Analysis queue lists the parameters for the particle size and selected target object scale to analyze. This menu helps edit or delete the data setting list.
Figure 4.

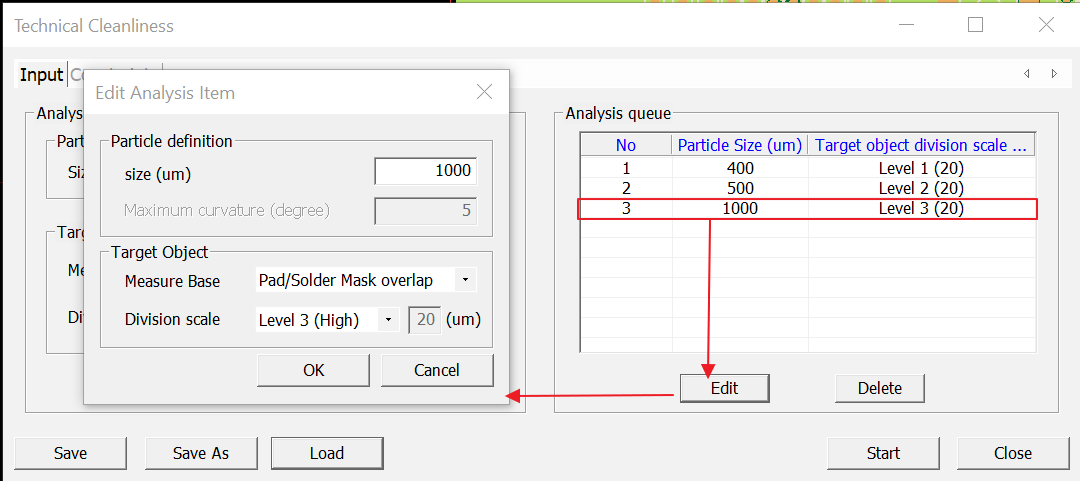

The analysis queue has the following options:
- Edit: Edits a selected parameter.
- Delete: Deletes a selected parameter from the queue.
Figure 5.
