Usage Codes

Add and edit usage codes.

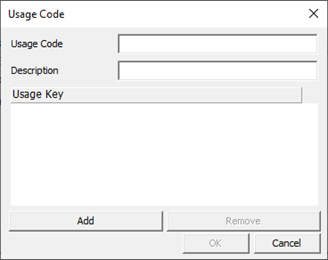

Figure 1.

1. Usage Code: Define the usage code name.
2. Description: Describe about the usage code.
3. Usage Keys: Display the usage keys which are assigned the usage code.
4. Add: Add usage keys to the usage code.



   Figure 2.

   1. Usage Code: Define a new usage code.
   2. Description: Describe about the usage code.
   3. Usage Key: Display the usage keys belonging the usage code.
   4. Add: Add usage keys to the usage code.

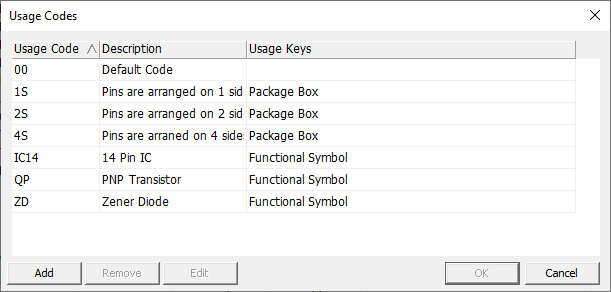

      Figure 3.

5. Remove: Remove selected usage code.
   The default usage code (00) cannot be removed.
6. Edit: Edit the selected usage code.
   The default usage code (00) cannot be edited.
7. Apply to all Parts: Apply current configuration tables to all parts in the library.
   Note: Once this function is used, previous configuration cannot be recovered.
