Bonding Area

Check FPCB bonding areas.

You can define the bonding area from user defined layers.
  • Bonding Layer Definition: Define FPCB bonding area with layer selection.
    • Layer Selection: Select layer containing bonding area from layer list.
  • Checking
    • Clearance between Bonding Areas: To check clearance between bonding areas, set the clearance value for them.
    • Keep-out from Bonding Area: Check whether Via or hole is placed in bonding area.

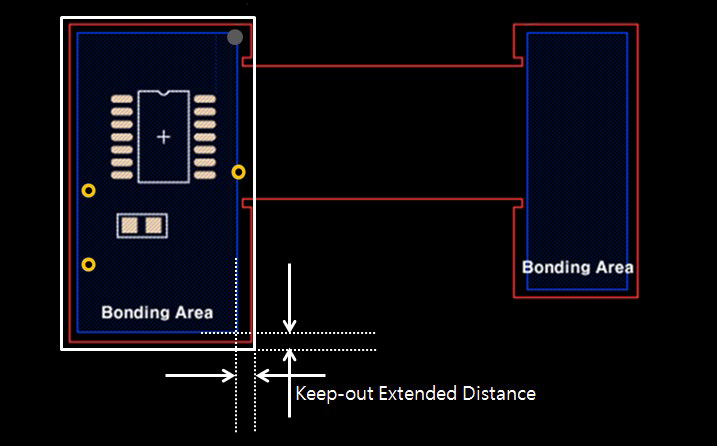

      Figure 1.
      • Via: Check Via existence in bonding area.
        • Keep-out Expand: To expand bonding area, users can assign expanding distance.
      • Hole: Check hole’s existence in bonding area.
        • Keep-out Expand: To expand bonding area, users can assign expanding distance.
