zlabel

Syntax

handle = zlabel(str)

handle = zlabel(hAxis, str)

h = zlabel(..., property, value, ...)

Inputs

str

Name of the z-axis.

Type: char | string

Dimension: scalar

hAxes

Axis handle.

Type: double

Dimension: scalar

property

Properties that control the appearance or behavior of the graphics object.

Type: string

Dimension: scalar

value

Value of the properties.

Type: double | integer | string

Dimension: scalar

Outputs

h

Handle of the label graphics object.

Examples

Simple zlabel example.

clf;
x=[0:0.1:2*pi];
y=x;
z=sin(x')*cos(y);
s=surf(x, y, z)
handle = zlabel('this is zlabel')

Figure 1. Simple zlabel example

Optional arguments example:

clf;
x=[0:0.1:2*pi];
y=x;
z=sin(x')*cos(y);
s=surf(x, y, z)
handle = zlabel('this is zlabel', 'fontsize', 12, 'fontweight', 'bold')

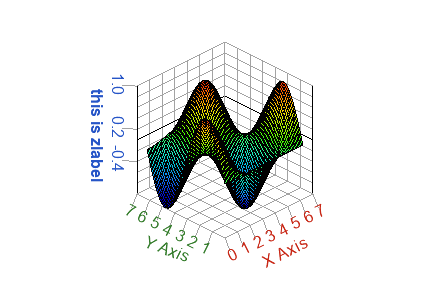

Figure 2. Optional arguments in the zlabel command
