Probabilistic

Interface to do Probabilistic analysis for the flow/thermal Network. The below mentioned step by step example provides insights about various options.

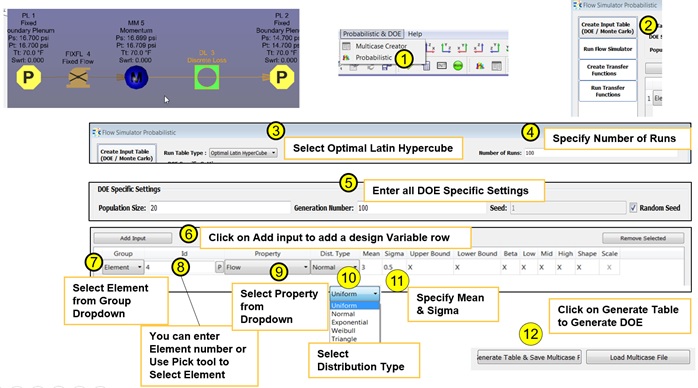

DOE Generations

The below example demonstrates the effect of flow rates variation on the Pressure drop across orifice.

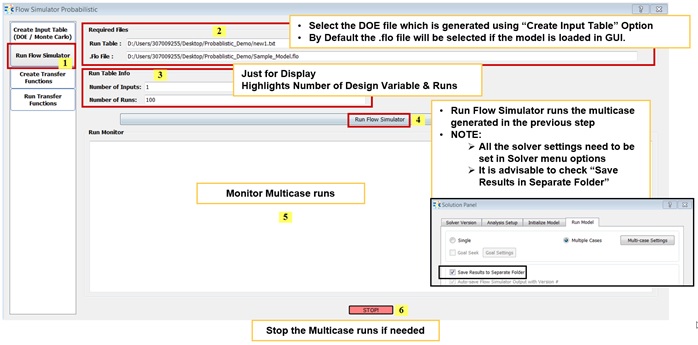

Run Flow Simulator window Overview

Create Transfer Functions Overview

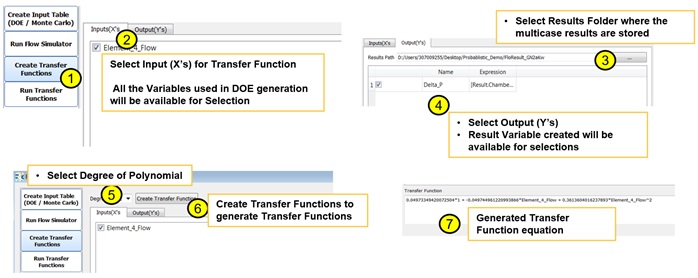

Flow Simulator Probabilistic allows user to create the transfer functions to quickly study the characteristics of the Flow & Thermal networks. You need to create the Output Variables(the Y’s) before creating the transfer functions. Refer Variable Editor Section to see how to create output variables.

Run Transfer Functions Overview

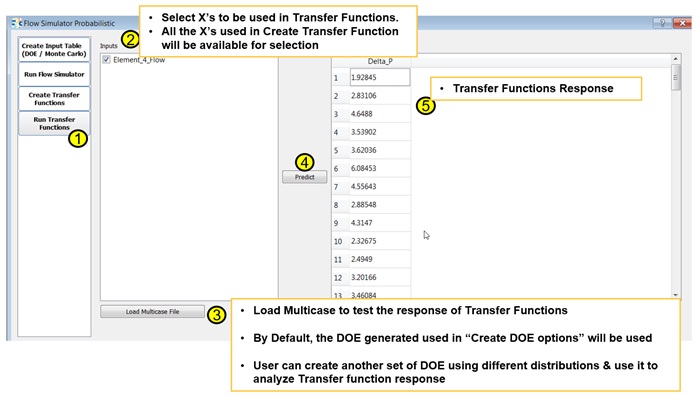

This Panel allows the user to analyze the response from Transfer functions created in the above step
