Flux in SimLab : 2D Examples

Solution Example Description Illustration
2D

Transient Magnetic

 Brushless IPM motor

Summary

All files

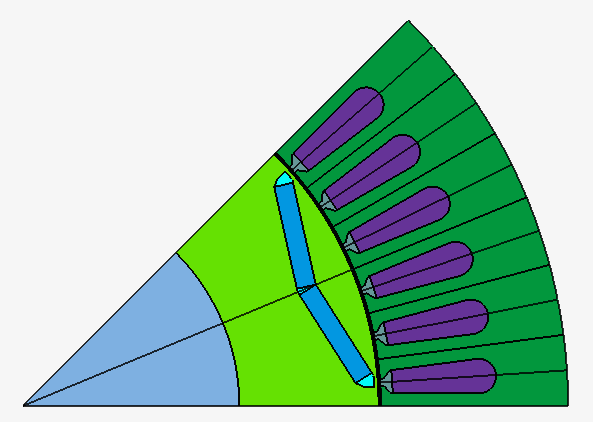

 The studied device, a brushless AC embedded permanent magnet motor presented in the figure in the right, includes the following elements:
  • a fixed part (stator) including yoke, slots, and windings
  • an air gap
  • a movable part (rotor) with embedded magnets

2D

Transient Magnetic

 Brushless SPM motor

Summary

All files

The studied device, a brushless DC motor with surface permanent magnet, includes the following elements:

  • a fixed part (stator) including yoke, slots, and windings
  • an air gap
  • a movable part (rotor) with surfaced magnets
