IM SQ 3PH
1. Motor factory – Export AREA – Home page view
The area “EXPORT” of Motor Factory groups two main families of functions:
1.1 “DOCUMENT”
In “DOCUMENT” the function “REPORT” allows building reports automatically to describe all the work achieved for the design and the tests.
1.2 “ADVANCED TOOLS “
In “ADVANCED TOOLS” the function “FLUX 2D” allows to build and export a model in Altair® Flux® 2D environment for performing advanced studies either with magneto harmonic or transient applications.
On the other hand, the function “FLUX SKEW” allows to build and export a model in Flux® Skew environment for performing advanced studies either with magneto harmonic or transient applications.
 |
|

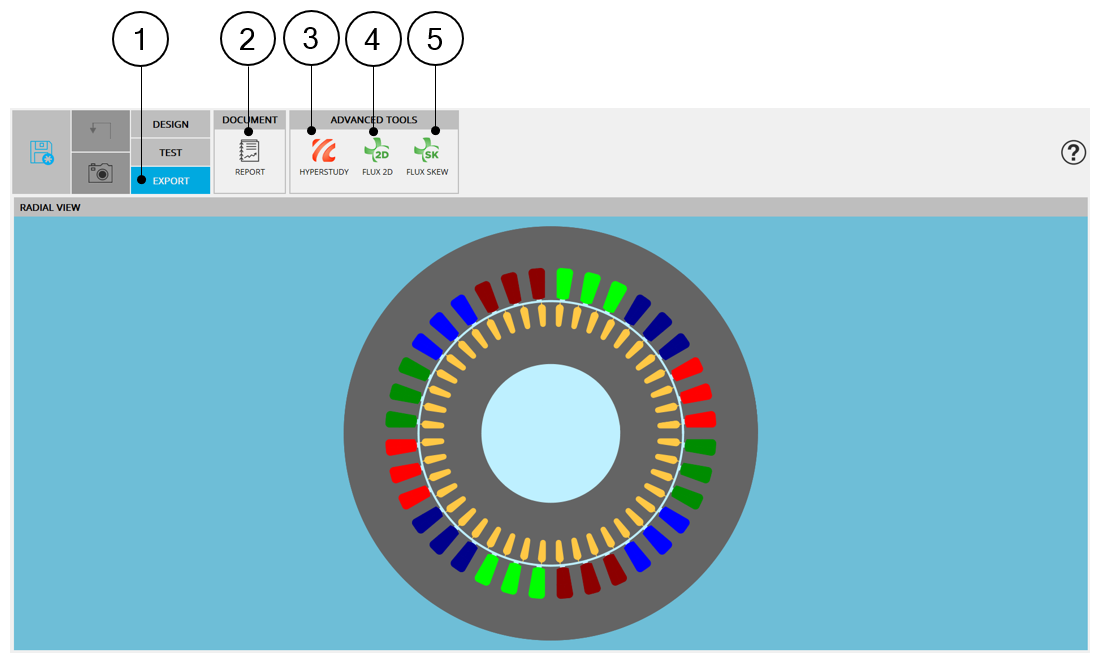

| Motor Factory - EXPORT area | |
| 1 | Selection of the EXPORT area of Motor Factory. |
| 2 | Access to the area “REPORT” in which a report can be made |
| 3 | Access to the area “FLUX 2D“ in which a model can be made and be sent to Flux® 2D |
| 4 | Access to the area “FLUX SKEW” in which a model can be made and be sent to Flux® Skew |
