Motor factory – Export AREA – Home page view
The area “EXPORT” of Motor Factory groups two main families of functions:
1. “DOCUMENT”
In “DOCUMENT” the function “REPORT” allows building reports automatically to describe all the work achieved for the design as well as for the tests.
2. “ADVANCED TOOLS “
In “ADVANCED TOOLS” the function “HYPERSTUDY” allows to build and export a connector in Altair® HyperStudy® for performing studies like optimization or Design Of Experiment (DOE).
Then, the function “FLUX2D” allows to build and export a model in Altair® Flux® 2D environment for performing advanced studies either with magneto static or transient applications.
 |
|

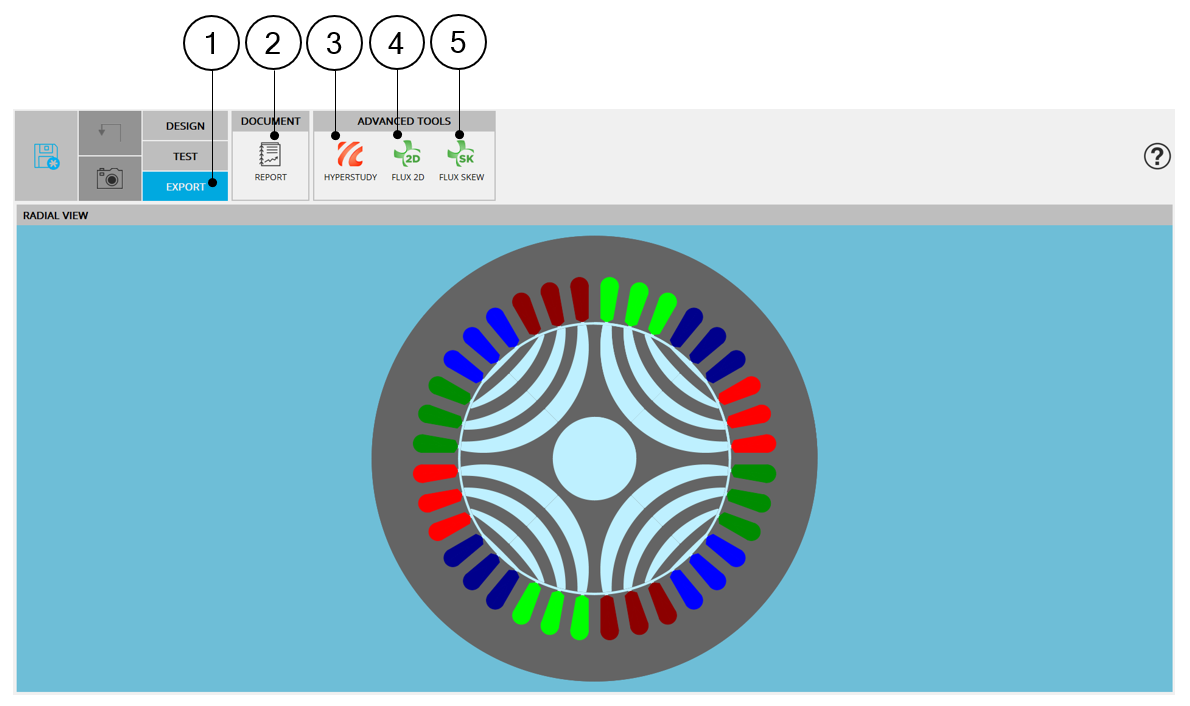

| Motor Factory - EXPORT area | |
| 1 | Selection of the EXPORT area of Motor Factory. |
| 2 | Access the area “REPORT” in which a report can be made |
| 3 | Access the area “HYPERSTUDY “ in which a connector can be made and be sent to HyperStudy® |
| 4 | Access the area “FLUX2D” in which a model can be made and sent to Flux® 2D |
| 5 | Access the area “FLUX SKEW” in which a model can be made and sent to Flux® Skew |
