Specify the number of samples for continuous results displayed on
surface graphs.
The default rendering for continuous data on a graph is determined automatically.
The sampling can be adjusted to display either the actual frequency samples or adjusted
to display a set number of frequency points.
Select the graph for which you want to modify the sampling.
On the Surface
contextual tabs set, on the Result tab, in the
Rendering group, click the Sampling settings icon.

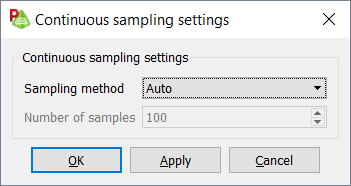

Figure 1. The Continuous sampling settings dialog.
From the Sampling methoddrop-down list, select one of the following:
To display the default rendering where the sampling is determined based
on the data, select Auto.
To display only the actual samples, select
Discrete.
To resample the data and display a fixed number of discrete points,
select Specify number of samples.
Click OK to set the sampling settings and to close
the dialog.
Sampling settings icon.
