Compose-4010: Solve Ordinary Differential Equations
This tutorial considers solving ordinary differential equations (ODE) in Compose OML language. A second order differential equation is used for illustration purposes as they are more common. The equation can represent a mechanical spring-mass-damper system or a series RLC circuit, both excited by an arbitrary sinusoidal input of amplitude A.
- Φ = the position
- α = the damping coefficient divided by the mass
- β = the spring stiffness divided by the mass
- The excitation is a force.
- Ф = the current
- α = the resistance divided by the inductance
- β = the reciprocal of the product of the capacitance and the inductance
- The excitation is a voltage whose derivative is A*sin(ωt).
Converting to First Order Equations
This is a required step since the ODE solvers can only solve first order explicit equations. This is done by introducing one additional state variable, ξ, to be equal to the derivative of the original state variable, Ф. There are two coupled first order differential equations:
The new state variable relationship equation:
Note that the equations are expressed in explicit form (only derivatives on the left side). The task is to solve these two coupled equations for the two-state variables as a function of time.
For the convenience of illustration, all of the parameters (α, β, A, ω) will be equal to 1.

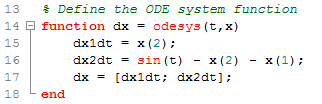

Implementing the Two Equations
Using the ODE Solver
The first argument is for the ODE system function. The second argument is the vector of times at which to solve the equation. The third argument is the initial condition vector for the state variables. The default tolerances are explicitly specified in the options argument for illustration.
The time vector is reproduced as the first output argument. It is identical to the input for this case. The second output argument, x, contains the values of φ and ξ by column at each time in vector t.
Plotting the Results

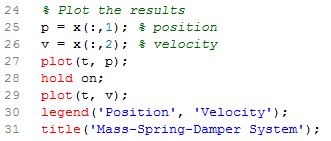

The following code extracts and plots the results.

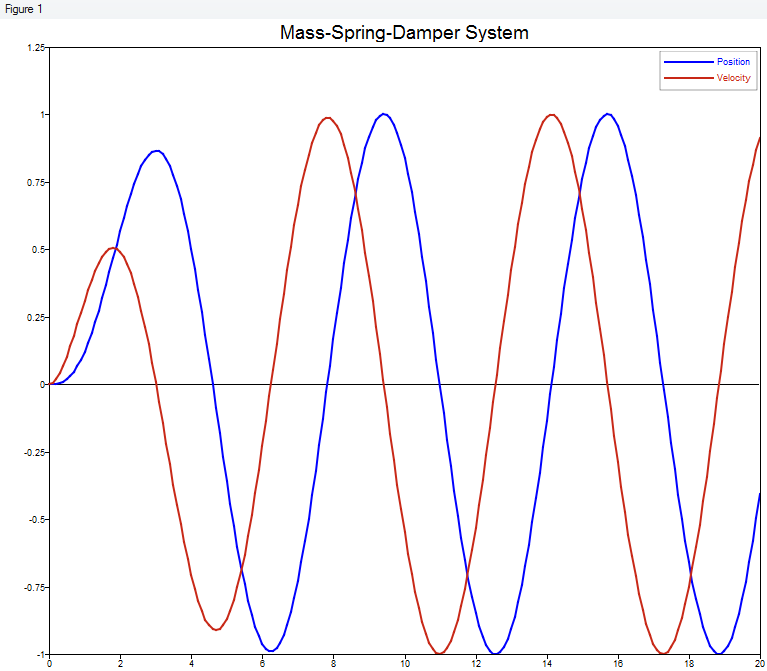

For a spring-mass-damper system, the plot represents the position and velocity. For the RLC circuit, the plot represents the current and its rate of change.
