Motor Factory Export

Export Area - Home page view

The area “EXPORT” of Motor Factory groups two main families of functions:

1) “DOCUMENT”

In “DOCUMENT” area the function “REPORT” allows building reports automatically to describe all the work achieved in the design as well as for the tests.

Then, the function “SCRIPT” allows to build and export a python script of a current motor in the application Script Factory or in a targeted folder.

2) “ADVANCED TOOLS “

In “ADVANCED TOOLS” area the function “HYPERSTUDY” allows to build and to export a connector in Altair HyperStudy ^® for performing studies like optimization or Design Of Experiment (DOE).

On the other hand, the functions “FLUX2D”, Flux SKEW, FLUX3D allow to build and export a model in Altair® Flux® environment (2D, Skew or 3D) for performing advanced studies either with magneto static or transient applications.

3) “SYSTEM”

Last, the function “SYSTEM” allows exporting files in FMU (Functional Mock-up Unit) format file or in MAT format file from FluxMotor®.

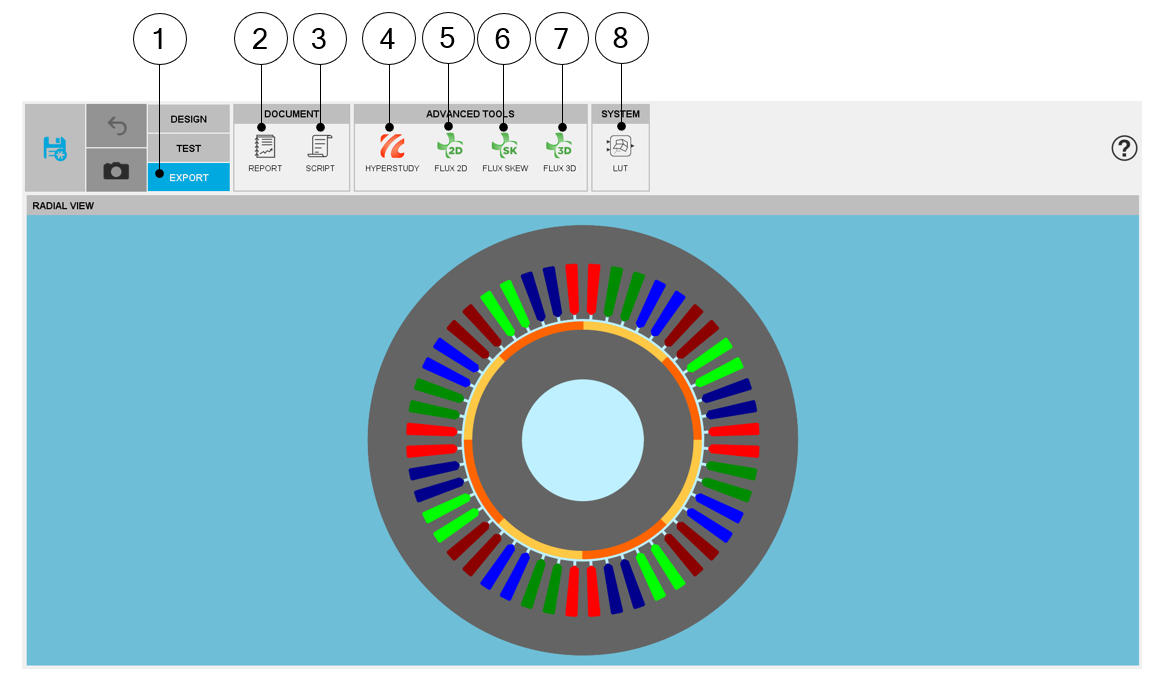

Motor Factory - EXPORT area (Illustration for Synchronous Machines with Permanent Magnets)
1	Selection of the EXPORT area of Motor Factory.
2	Access the area “REPORT” in which a report can be made
3	Access the area “SCRIPT” through which a python file in which all the needed command lines
4	Access the area “HYPERSTUDY” in which a connector can be made and be sent to HyperStudy®
5	Access the area “FLUX2D” in which a model can be made and sent to Altair® Flux® 2D
6	Access the area “FLUX SKEW” in which a model can be made and sent to Flux® Skew
7	Access the area “FLUX3D” in which a model can be made and sent to Altair® Flux® 3D (when available)
8	Access the area “SYSTEM” in which a data files can be exported in FMU format files or in MAT format files (when available)

For more information, please, refer to the user guide dedicated to Motor Factory – Export environment for each type of machine.
