IM SQ 3PH
Warning ! Do NOT use the export to Flux3D for induction machines
The export of induction machines with squirrel cage from FluxMotor to Flux 3D is not yet finalized and it should not be accessible from the GUI of Motor Factory / Export environment.
Unfortunately, the icon of this export has not been hidden in the GUI of FluxMotor 2022.3 / Motor Factory / Export area.
It is highly recommended to NOT use this export because there are still several critical issues that need to be fixed.
 |

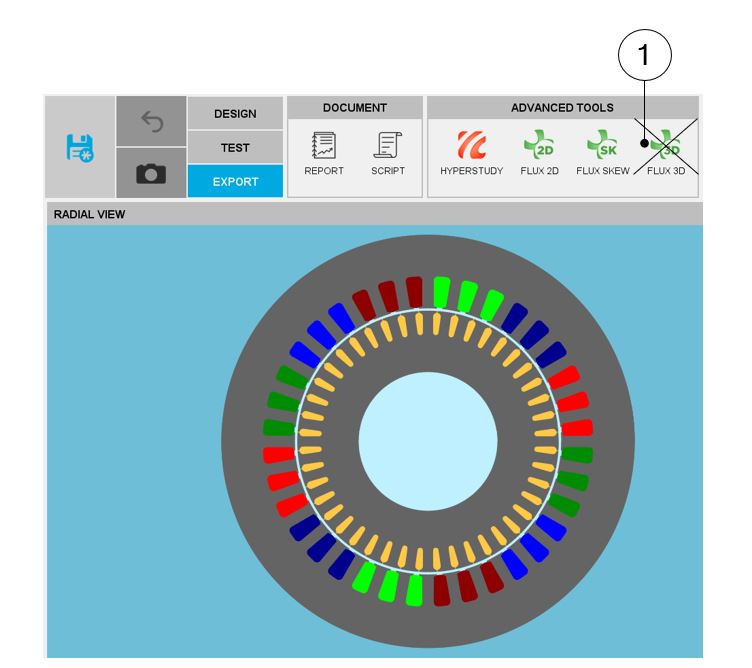

| (1) - Do NOT use the export to Flux3D for induction machines |
1. Motor factory – Export AREA – Home page view
The area “EXPORT” of Motor Factory groups two main families of functions:
1.1 “DOCUMENT”
In “DOCUMENT”, the function “REPORT” allows building reports automatically to describe all the work achieved for the design and the tests.
Then, the function “SCRIPT” allows to build and export a python script of a current motor in the application Script Factory or in a targeted folder.
1.2 “ADVANCED TOOLS “
In “ADVANCED TOOLS”, the function “HYPERSTUDY” allows to build and export a connector in Altair® HyperStudy® for performing studies like optimization or Design of Experiment (DOE).
In “ADVANCED TOOLS”, the function “FLUX 2D” allows to build and export a model in Altair® Flux® 2D environment for performing advanced studies either with magneto harmonic or transient applications.
On the other hand, the function “FLUX SKEW” allows to build and export a model in Flux® Skew environment for performing advanced studies either with magneto harmonic or transient applications.
 |
|

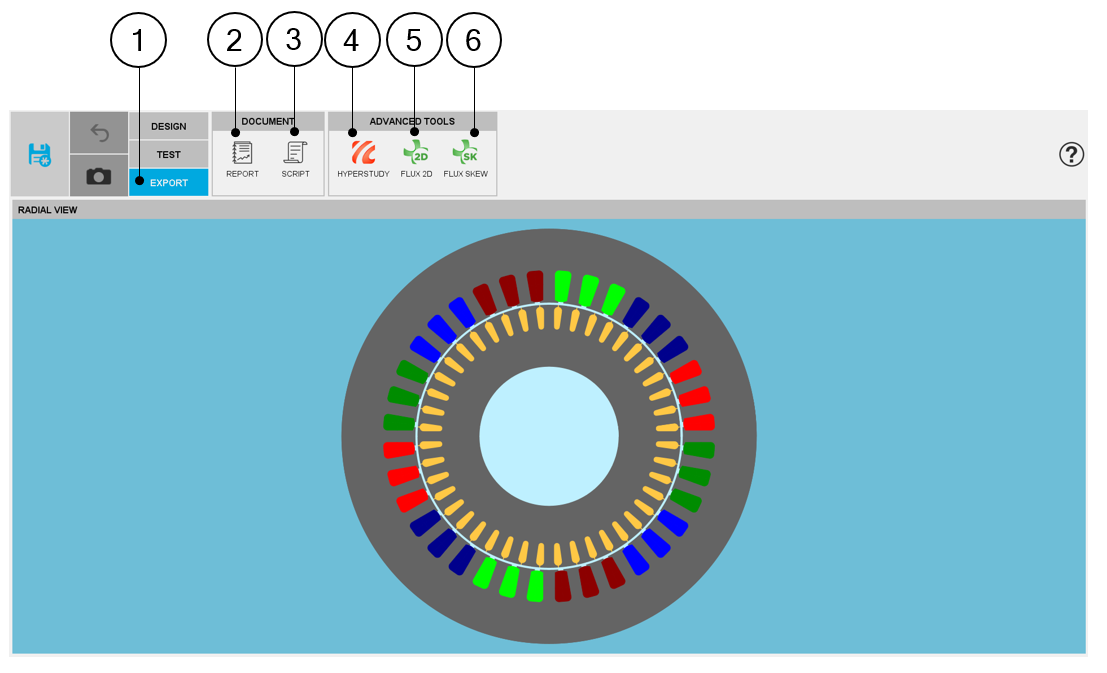

| Motor Factory - EXPORT area | |
| 1 | Selection of the EXPORT area of Motor Factory. |
| 2 | Access to the area “REPORT” in which a report can be made |
| 3 | Access the area “SCRIPT” for generating a python file in which all the needed command lines are written to rebuild the motor |
| 4 | Access the area “HYPERSTUDY “ in which a connector can be made and be sent to Altair® HyperStudy® |
| 5 | Access to the area “FLUX 2D“ in which a model can be made and be sent to Flux® 2D |
| 6 | Access to the area “FLUX SKEW” in which a model can be made and be sent to Flux® Skew |
