Net Color

You can change the color of net(s) to make it easier for exploring PCB design.

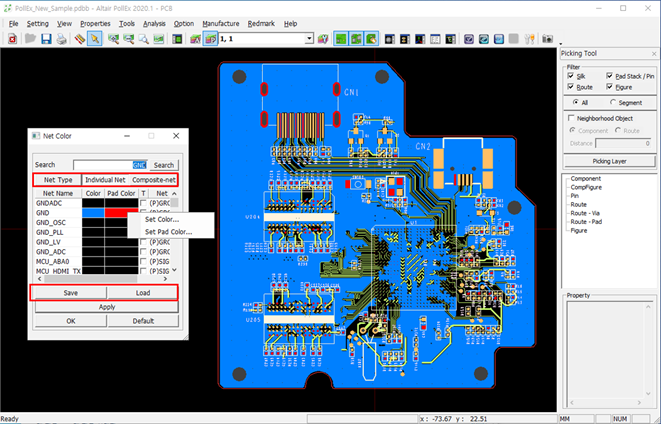

Figure 1.
  • Select net classification.
    • Net Type: Net sorting depending on net type. Ex) power/ground/signal
    • Individual Net: Net sorting depending on net name.
    • Composite-net: Net sorting for composite-nets.
  • After selecting net(s), use the mouse right button. And at pop-up menu, use Set Color to select certain color.
  • If checking T, make transparent selected net status.
  • Click Apply to apply changing into design.
  • Save the setting of defined color to file (*NCLR). And to use this change at next design opening, click Load and OK.
From the menu bar, click Tools > Net Color.
