Board Setup

Some of PollEx DFA checking items, Lead Length and Assembled Height, require board thickness during checking. Before checking, you need to define board thickness information.

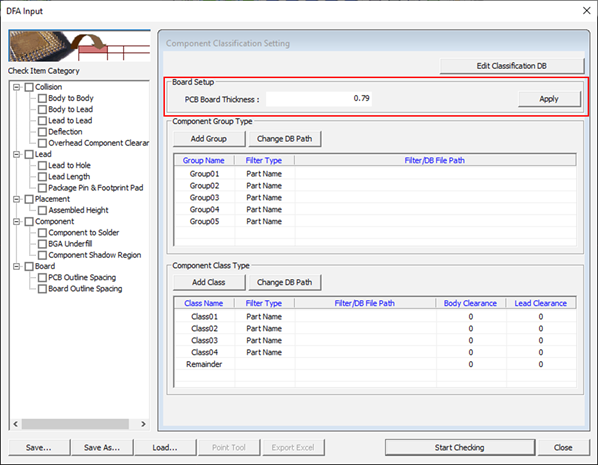

Figure 1.

• PCB Board Thickness: If there is no definition, PollEx DFA uses the value defined in PollEx PCB - Properties - Stack-up. You can change the board thickness in this dialog. Input the thickness value in the blank column.
• Apply: Apply the given value.
