Component Class Setting

There are three types of making CLASS: Direct Component Select, Select From Component List, and Select DB File.

Components that are not included in any classes will be in Remainder.

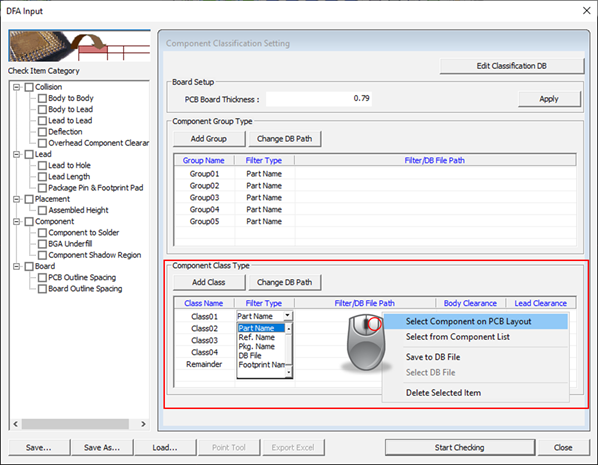

Figure 1.
  • Class Name: Input class name.
  • Filter Type: Select the classification filter type.
    • Part Name: Make groups for components that have apart name with the given condition in Filter/DB File Path.
    • Ref. Name: Make groups for components that have reference names with the given condition in Filter/DB File Path.
    • Pkg. Name: Make groups for components that have package names with given condition in Filter/DB File Path.
    • DB File: Make group for components that are defined in *.txt style DB file.
    • Footprint Name: Make groups for components that have a footprint name with given condition in Filter/DB File Path.
  • Filter/DB File Path: Input names, DB file path depending on filter type.
    • Direct Component Select: Make a component group.
    • Select From Component List: Make a component group with selection from component list.
    • Save to DB File: Save the list into a DB file.
    • Select DB File: Make component list with importing DB file.
    • Delete Selected Item: Remove selected class.
  • BDC: Default clearance for body.
  • LDC: Default clearance for leads.
  • Add Class: Make a new line to register a new class.
  • Change DB Path: Change DB file path.
