View Generic Data

AMDC fills the missing data with the the generic product data for the trade products.

1. To view generic data for a material, select a material data set.

   In the following example, ABS material data set from Plastics is selected.

   The material database is filtered and displays the results.

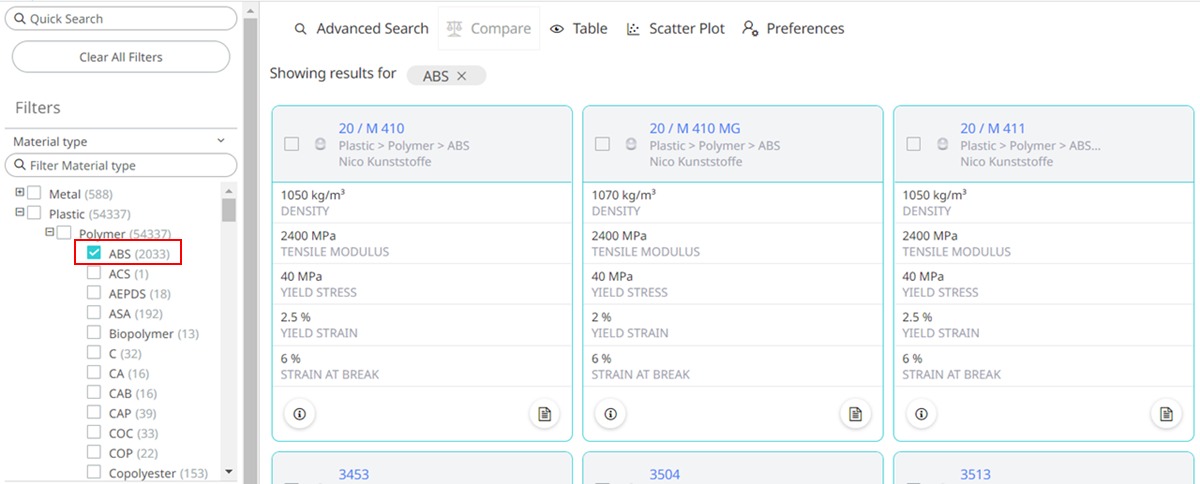

   Figure 1. Select Material Data Set

2. Click of a required material.
   A window opens to the right displaying the material information.
3. Click Generic Data.
   The ABS generic data filling the missing properties data for the selected material is displayed.



   Figure 2. Generic Data by ABS

4. Click Chart to view the ABS generic chart data provided by the product Polymer > ABS.
5. Select the plot curve value from the drop down list.



   Figure 3. Select Plot Curve Value

   The collected system data for the missing material peroperty is displayed.

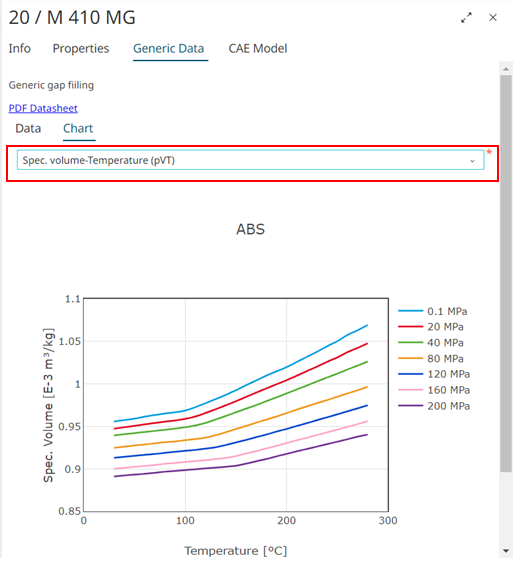

   Figure 4. ABS Chart Data
