2D View
CoMan's 2D View visualizes the specified environment database and computed result for an arbitrary defined horizontal cutting plane.
The horizontal display height, as well as further parameters related to the 2D View can be
specified on the Display tab of the Settings
dialog. The currently displayed height level is shown in the status bar and can be modified
easily by pressing Shift while scrolling the mouse wheel.
Tip: To edit the
parameters of the 2D View, use the menu .

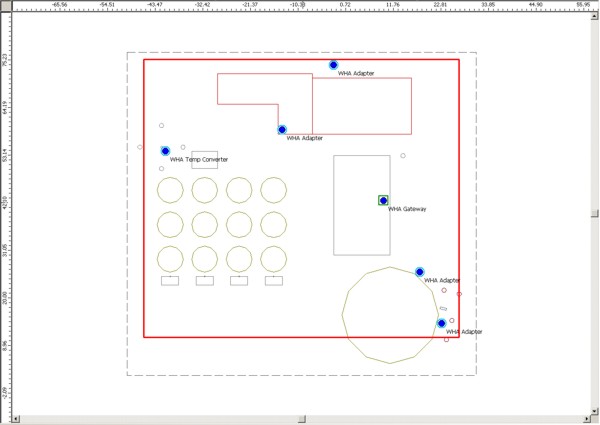

Figure 1. CoMan 2D graphical view.
The dashed gray line around the database highlights the border of the vector database, whereas the red polygon indicates the horizontal prediction area. If the prediction mode is set to point-to-point for node locations (see the Prediction tab of the System Configuration dialog), the prediction area will not be displayed.
