Sine Hyperbolic Inverseモデル

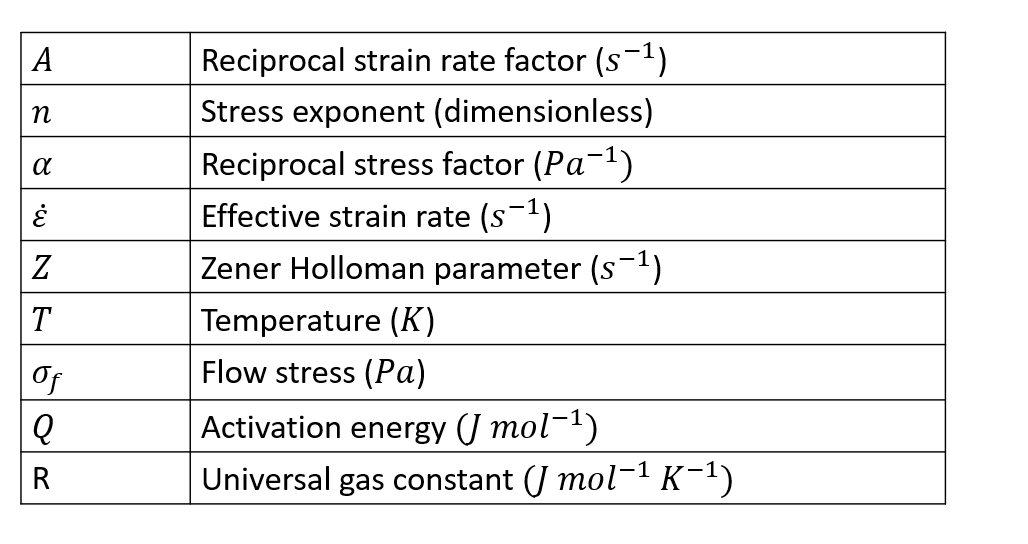

Sine Hyperbolic Inverseモデルは、次の式によって得られます。

Workpiece	Aluminium	{
	ConstitutiveModel =	"SineHypINv"
	Density =	ρ
	SpecificHeat =	Cp (T)
	Conductivity =	K (T)
	CoeffOfThermalExpansion =	βT
	VolumericHeatSource =	Qvol
	StressExponent =	n
	ActivationEnergy =	Q
	ReferenceTemperatrue	T0
	SolidusTemperature =	Ts
	LiquidusTemperature =	T1
	ReciprocalStrainFactor =	A
	UniversalGasConstant =	R
	Alpha =	α
	StrainRateOffset =	ε
	YoungModulus =	E
	PoissonRatio =	ν}
