Get back results in FluxMotor
1. Introduction
All the motors resulting from the operations performed with Altair® HyperStudy® can be used back in Motor Catalog of Altair® FluxMotor®, and then these can be edited in Motor Factory very quickly.
 |
|

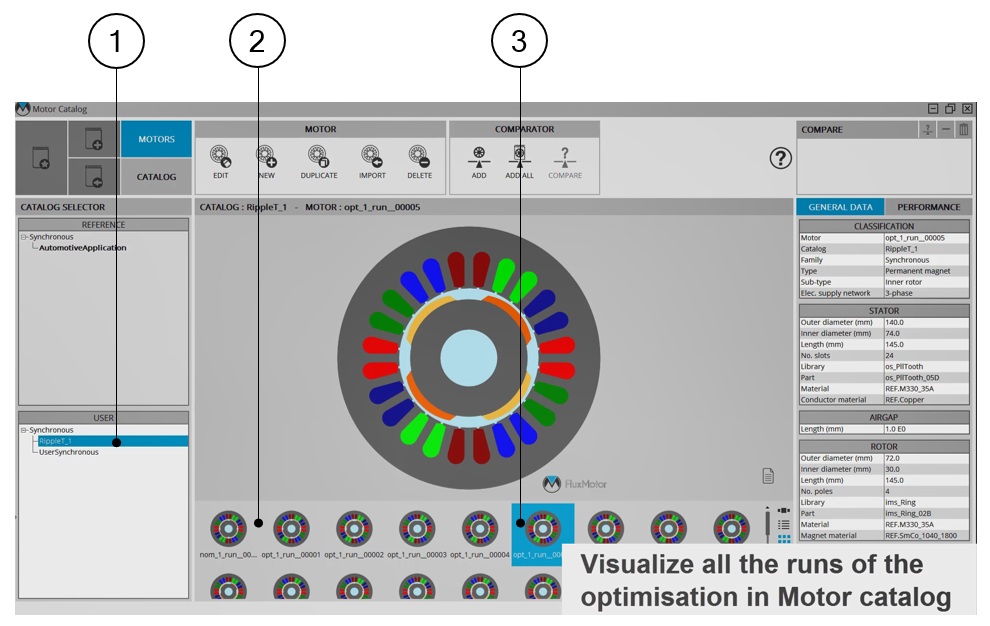

| Motor Catalog – Visualization of results got from HyperStudy® | |
| 1 | A catalog is automatically built by using the name of the connector defined by the user |
| 2 | All the operations from HyperStudy® are stored in the dedicated catalog |
| 3 | Each motor can be selected, visualized and edited in the Motor Factory, to be evaluated more in depth |
2. Connection between FluxMotor® and HyperStudy®
Before starting new studies in HyperStudy® by using connectors exported from FluxMotor®, FluxMotor must be registered as a new solver script in HyperStudy®.
This must be defined only while using the coupling for the first time.
 |
|

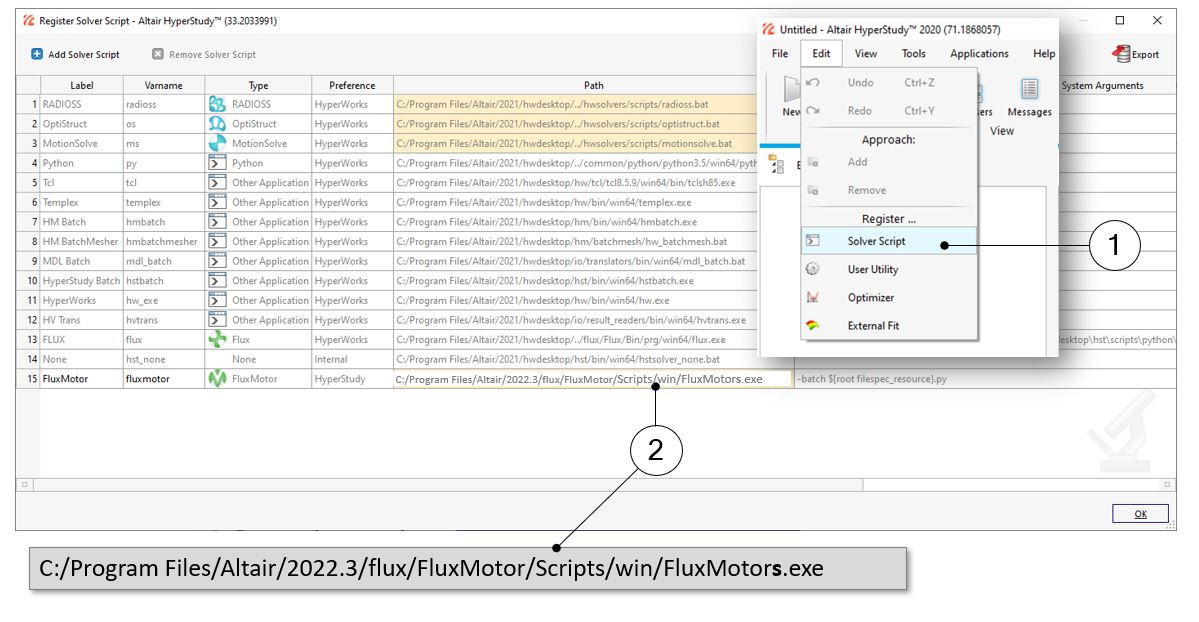

| Connection between FluxMotor® and HyperStudy® | |
| 1 | Open the area in HyperStudy® to register FluxMotor 2022.3 script |
| 2 | Path where FluxMotor.exe must be selected to be registered as a new
solver in HyperStudy®. Note: FluxMotor
s .exe with a “s” at the end of FluxMotor
s. This must be defined only while using the
coupling for the first time
Note: Since the
version 2022.1 of HyperStudy, the FluxMotor solver script is
automatically registered, when the default path installation is selected
while installing Flux and FluxMotor.
|
Note: The new auto generating the HyperStudy Study in HyperStudy
Application (described above) allows to automatically register FluxMotor® as a new
solver script in HyperStudy®. If HyperStudy is not install in the same folder (by
default : C:\Program Files\Altair\2022.3\hwdesktop\hst), the path must be defined in the
user preferences via the supervisor of FluxMotor (Path to HyperStudy – Needed for
HyperStudy export – Ref. 3 below)
 |

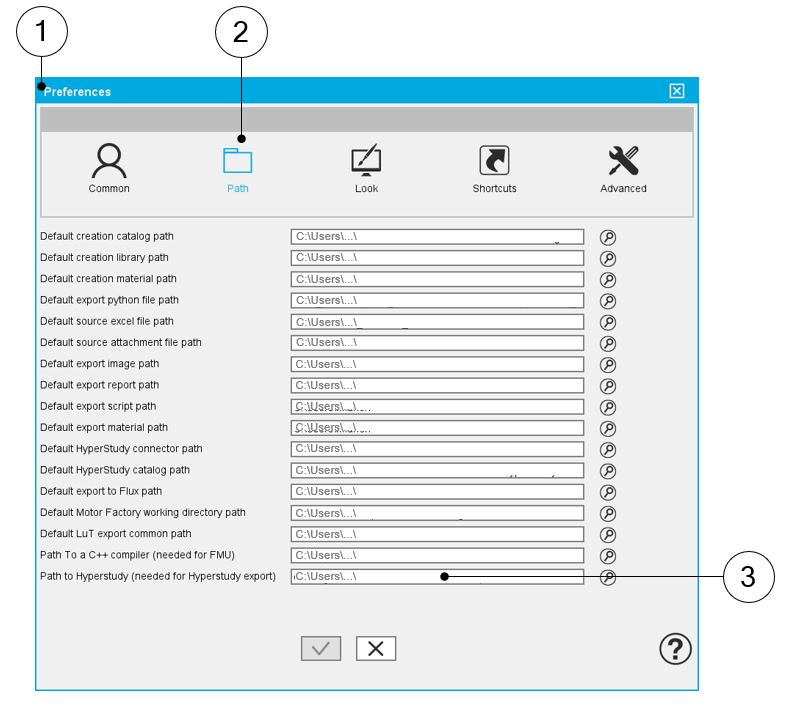

| Path to HyperStudy – Needed for HyperStudy export – It must be defined in the user preferences (Supervisor of FluxMotor) |
