Impedance
End ring - Inter bar Impedance
The aim of this section is to compute the inter bar impedance of the squirrel cage.
 |
|

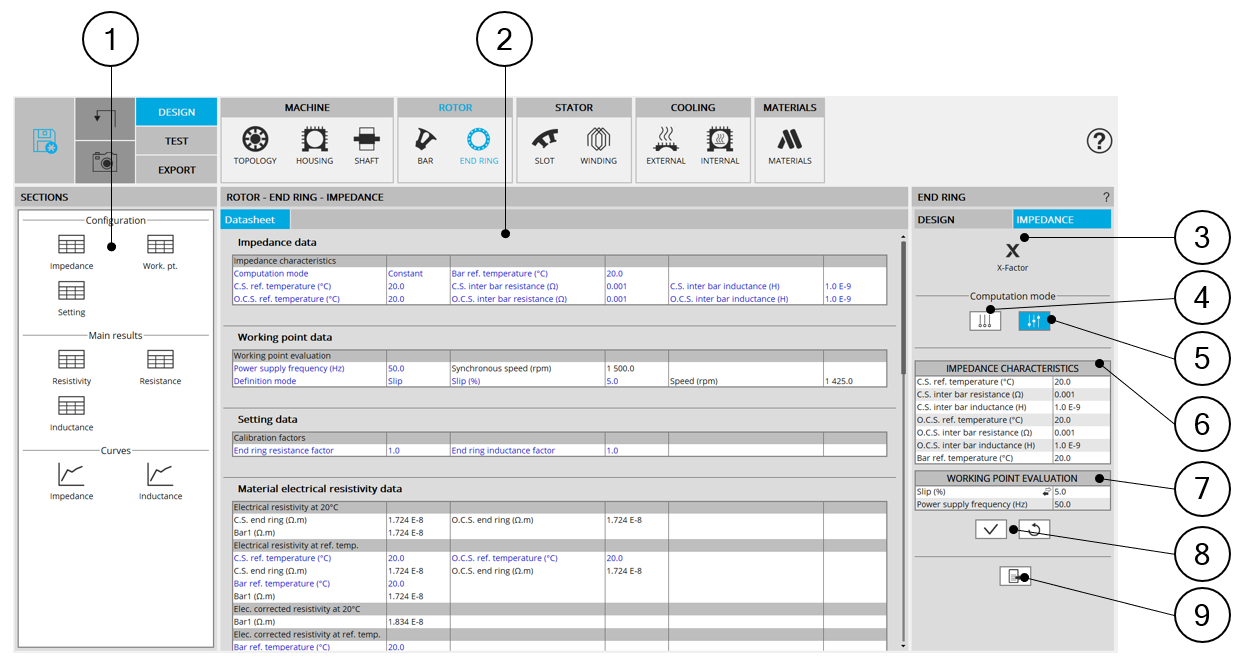

| END RING - IMPEDANCE area | |
| 1 | Shortcut panels to navigate in the impedance results |
| 2 | Main window for results |
| 3 | Button to open calibration factor window |
| 4 | Automatic computation mode |
| 5 | Constant computation mode |
| 6 | Impedance characteristics to be defined |
| 7 | Working point evaluation to be defined (optional) |
| 8 | Buttons to validate input values or reset default input parameter values (Pressing the “enter key” twice applies inputs too). |
| 9 | Icon to export end ring impedance data into *.txt or *.xls files. |
