Automatic Computation mode
When automatic computation mode is set, inter bar end-ring impedances are computed by internal processes, being a function of the slip (or speed), the temperature at the end ring (at Connection Side and Opposite Connection Side), and the material of the end ring.
 |
|

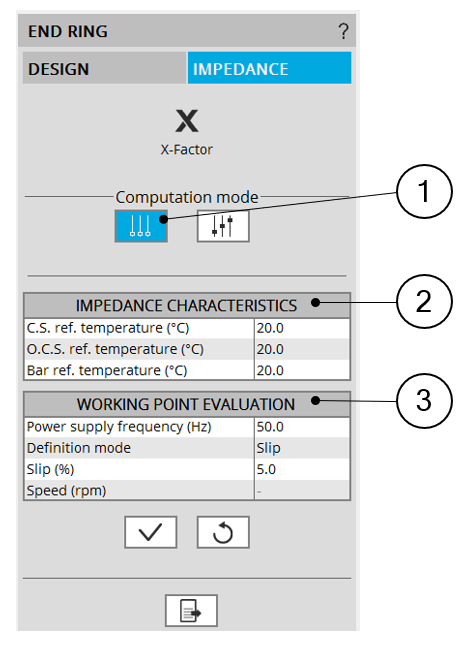

| END RING – Automatic computation mode | |
| 1 | Automatic computation mode selection |
| 2 | Impedance characteristic to be defined for which the impedances will be computed (optional) |
| 3 | Working point evaluation to be defined for which the impedances will be computed (optional) |
