SS-T: 4090 SN Time Fatigue

Create an SN Time fatigue loadcase.

Prerequisites
Some features used in this tutorial are only available in SimSolid Advanced version. Please switch to Advanced to complete this tutorial.
Purpose
SimSolid performs meshless structural analysis that works on full featured parts and assemblies, is tolerant of geometric imperfections, and runs in seconds to minutes. In this tutorial, you will do the following:
  • Create SN Time fatigue loadcase.
  • Import channels and create events.
  • Solve and review results.
Model Description

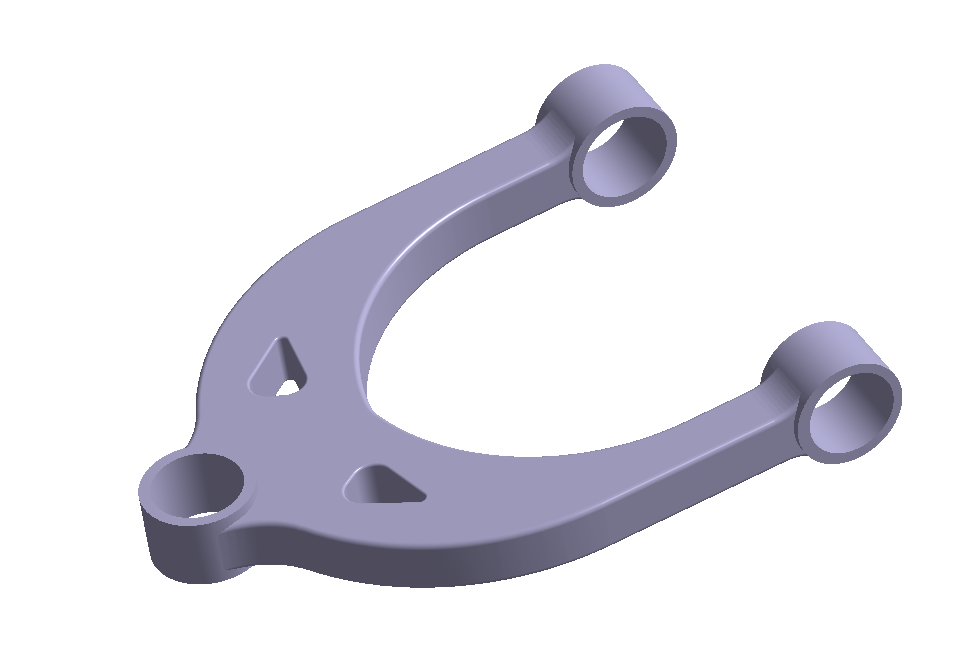

The following model files are needed for this tutorial:
  • SNTime.ssp
  • Channel1.csv


Figure 1.
The project (.ssp) file has the following specifications:
  • Material is set to Steel for all parts.
  • Linear static subcase with results is included.

Open Project

  1. Start a new SimSolid session.
  2. On the main window toolbar, click Open Project .
  3. In the Open project file dialog, choose SNTime.ssp
  4. Click OK.

Review Model

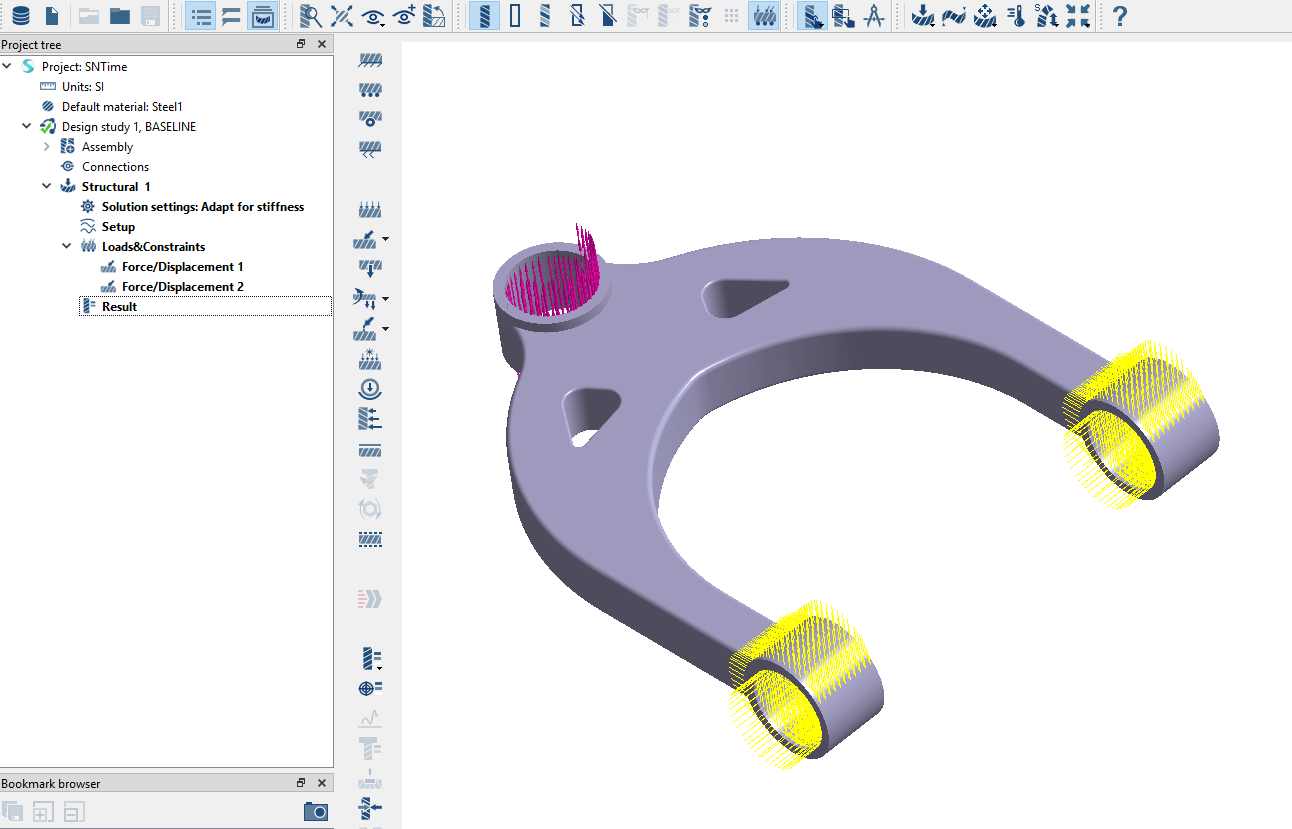

  1. In the Project Tree, expand the Structural 1 Analysis Workbench.
  2. Expand the Loads&Constraints branch and review the loads.


    Figure 2.
  3. Click (Results plot) and choose the desired plot to review regions of high stress.

Add Fatigue Material Properties

If an SN curve has already been assigned, skip this step. Check the assigned material properties by right-clicking Assembly in the Project Tree and selecting Show > Materials.

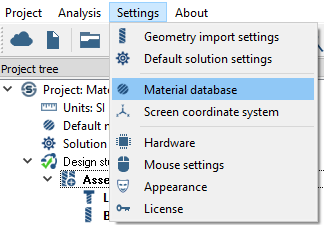

  1. In the main menu, click Settings > Material database.


    Figure 3.

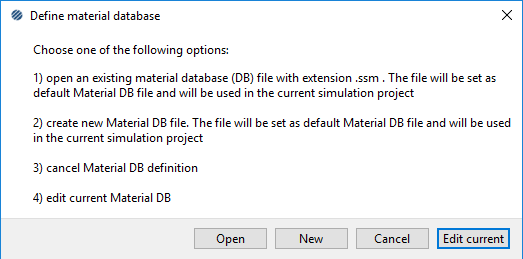

  2. In the dialog, click Edit current.


    Figure 4.
  3. In the Generic Materials group, right-click Steel and select Copy from the context menu.
  4. Edit the copied material.
    1. Select Steel1 - Copy_0.
    2. Click Edit material.
  5. Add fatigue curves.
    1. In the editing field of the dialog, expand the Fatigue properties branch and click Add stress-life (SN) curve....
    2. Verify the Curve definition method is set to Estimate from UTS.
  6. Click Apply.
  7. Click Save.

Create SN Time Analysis

  1. On the main window toolbar, click (Fatigue analysis).
  2. In the drop-down menu, select SN Time.
    The new analysis appears in the Project Tree. The SN Time Workbench items are listed.


    Figure 5.

Import Channels

  1. On the workbench toolbar, click (Import channels).
  2. In the file explorer, choose Channel1.csv.
  3. Click Open.

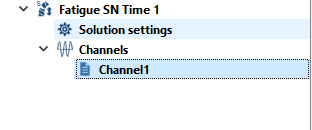

    The imported channel appears in the Project Tree.


    Figure 6.
    You can import multiple channels for each loadcases, and more than one channels can be included in the same file.

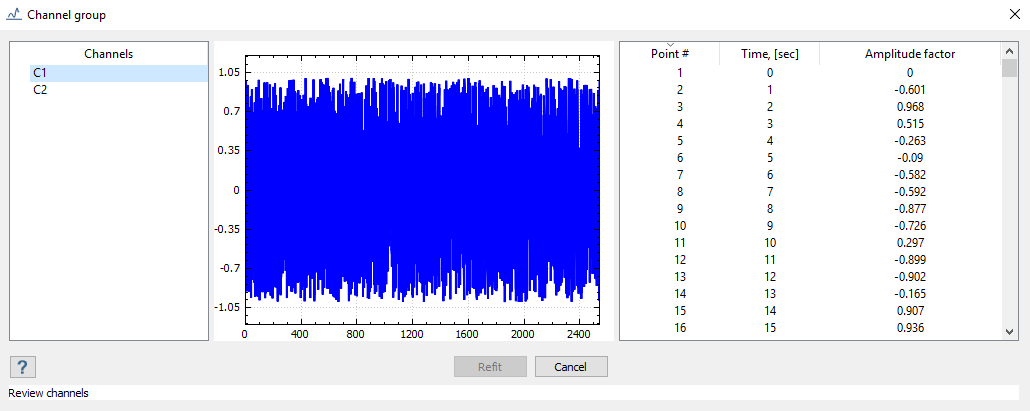

  4. In the Project Tree, double-click on Channel 1.
    The Channel group dialog opens and lists the channels available in the load history file, along with their plots and coordinates. You can cycle between them to view the plots.
    Note: You cannot edit channels from this dialog.


    Figure 7.
  5. Optional: Click on the column headers to sort the plot table by Time or Amplification Factor.
  6. Click Cancel to close the window.

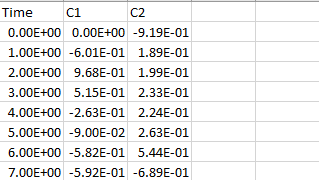

    Note: Figure 8 shows the header format for the .csv file. The first column is Time and the rest of the columns are channel names.


    Figure 8.

Create Events

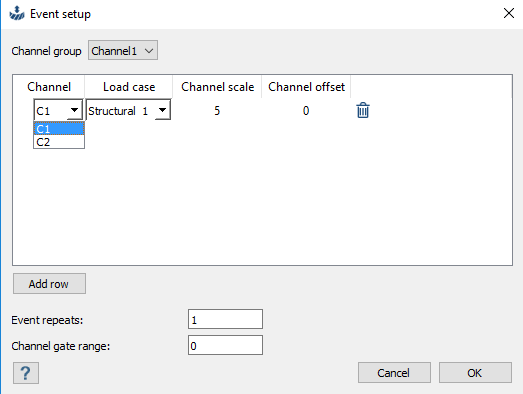

  1. On the workbench toolbar, click (Create event).
  2. In the Event setup window, verify that Channel group is set to Channel1.


    Figure 9.
  3. Create a channel-loadcase map.
    1. Click Add row.
    2. Under Channel, choose C1 from the drop-down menu.
    3. Under Load case, choose Structural 1 in the drop-down menu.
    4. For Channel scale, enter 5.
      This indicates stresses are amplified by 5 for Structrual 1.
    5. For Event repeats, accept the default of 1.
  4. Click OK.
    The events appear in the Project Tree.

Run Analysis

  1. On the Project Tree, open the Analysis Workbench.
  2. Click (Solve).

Review Results

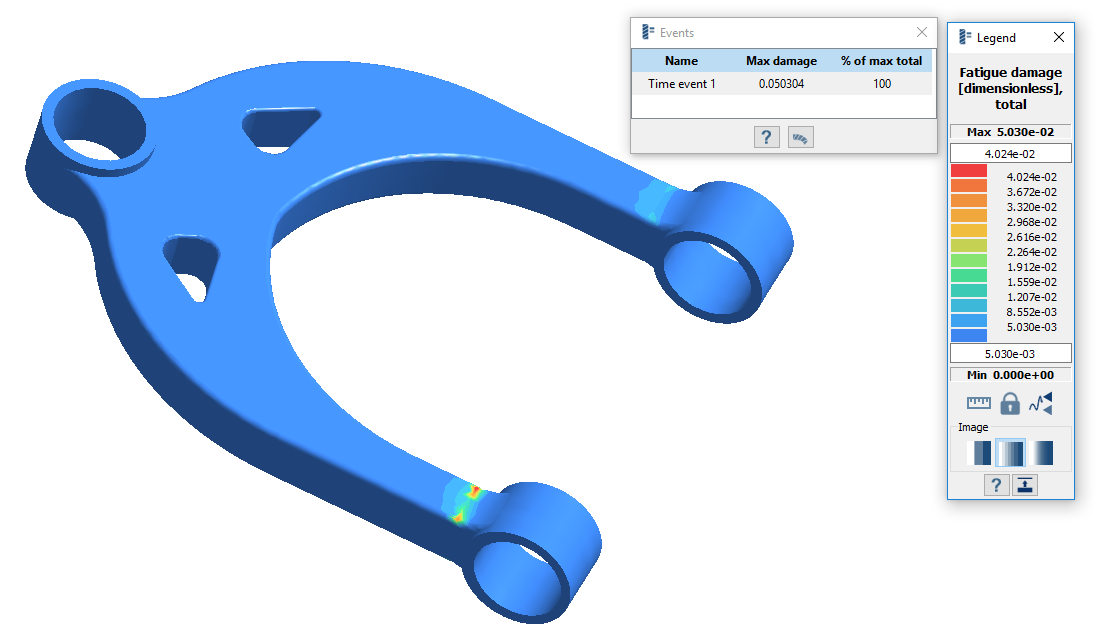

  1. In the Project Tree, Select the Fatigue SN Time 1 subcase.
  2. On the Analysis Workbench, select > Fatigue damage.
    The Legend window opens and displays the contour plot.


    Figure 10.
    Note: If there are multiple events in the load case, you can plot damage for each event or you can plot cumulative damage.
  3. Pick info.
    1. On the Results Workbench toolbar, click (Pick info).
    2. In the modeling window, select points of interest.
    3. In the Pick info dialog, for Event, select Total from the drop-down menu to view cumulative damage, or select the individual Event of interest.


      Figure 11.
