Modify a Template After Plot

View and modify plot parameters after plotting a result file.

1. Click on the plot view.
   The plot TOC is displayed with the applied template.

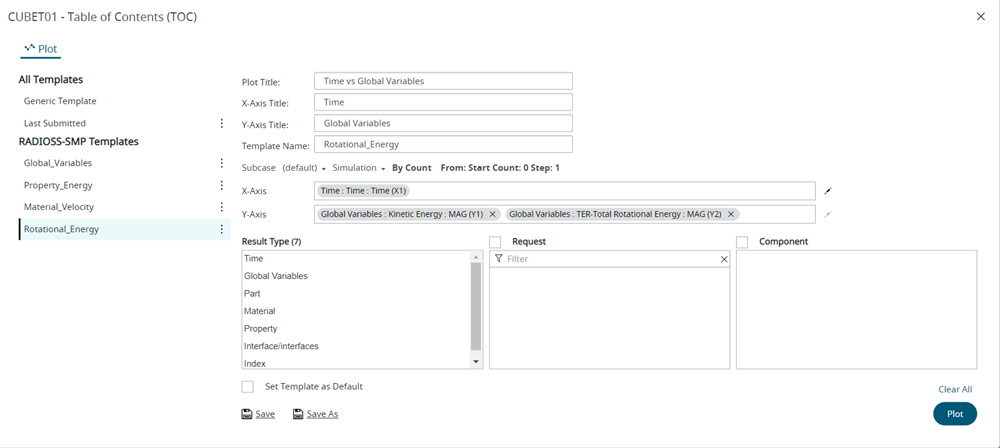

   Figure: Plot TOC




2. Modify the plotting parameters of the template.
3. Choose one of the following:
   • Click Save, the template is updated with the updated parameters.
   • Click Set Template as Default, to set the template as a default template.
     Note: If a default template is set for a result file then RVS will display the plot result directly. If the set default template doesn't match the result file, the Plot TOC is displayed with a message to select another valid template.
   • Click Save As, to create a new plot template.
4. Click Plot to view the changes in the plot result.
   Tip: Click to clear the Y-axis selections.
