Creating the Feed Pin
Create the feed pin using a single line element.
-
On the Construct tab, in the Create Curve group, click the
Line icon.
-
On the Create Line dialog, enter the start and end
point for the line.
- Start point: (0, feed_pos, 0)
- End point: (0, feed_pos, substrate_h)
- Label: feed_line

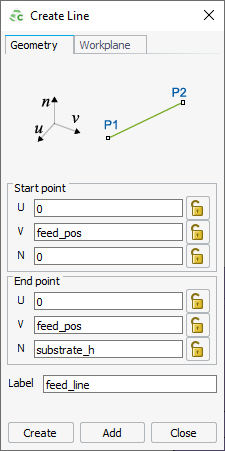

Figure 1. The Create Line dialog. - Click Create to create the line and to close the dialog.
